PLATE, MICROTITRATION, 96 wells, U-shaped bottom
STD
ELABPLAT96U
Valid Article
Account code:
60200
HS Code:
901890
Last Updated on:
21/11/2024, 22:20:07
Former
Code(s):
ELAEPLAT96U
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
MICROTITRATION PLATE, U-wells
Definition

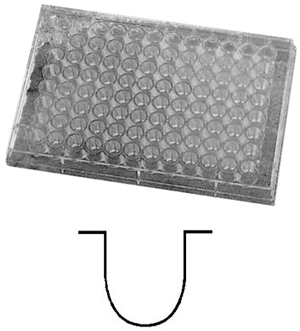

Plate composed of 96 numbered U-shaped wells, used for the micro-techniques (very small volumes).
Synonym
round bottom
Specifications
Material
Polystyrene crystal or transparent propylene
Technical specifications
- Dimensions: ± 128 x 82 mm
- Without cover
- 96 U-shaped wells, ± 300 µl
- Alpha-numeric wells identification (1-12 and A-H)
- Single use
Packaging & Labelling
Box of 100 non sterile plates.
Instructions for use
If there is a need to protect the plate against dust, use sealing film to cover.
Storage
Protected from humidity and heat.
MSF requirements
Necessary to perform the CATT tests (trypanosomiasis).
The U-shaped wells allow a proper homogenization of the dilution and are used for hemaglutination techniques.
