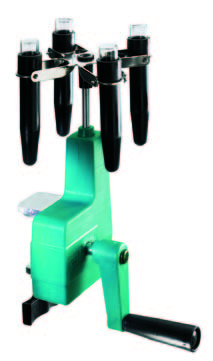

CENTRIFUGE, hand-operated for 4 tubes 15 ml
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
CENTRIFUGE, hand-operated
Definition
Hand-operated rapid rotation apparatus, used to separate two substances of differing density.
Specifications
Centrifuge for conical centrifuge tubes with cap/ plug (15ml)
Material
- Fiberglass base
- Fiberglass dismountable gear support structure
Technical specifications
- Shaft: maximum speed 3,000 rpm
- Bench clamp with adjustable screw (0 to 40 mm)
- Rotor with 4 aluminium buckets (ref. 1014)
- Maximal capacity: 4 x 15 ml
Dimensions
- L x W x H : 140 x 175 x 285 mm
- Weight: approx 0.9 kg
Supplied with the Article
Sometimes the centrifuge is supplied with 4 glass, non-graduated tubes, with conical bottom (ext. Ø 17 mm): but this is not mandatory at all.
Instructions for use
To be fixed to a stable support (thickness must be maximum 4 cm)
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
MSF requirements
Alternative to the electric centrifuge when there is no electric power.
Robust and of small size
