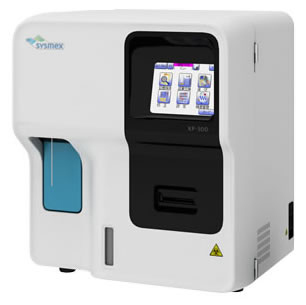

HAEMATOLOGY ANALYSER (Sysmex XP-300)

The XP300 is discontinued by the manufactuer in 2022 and replaced by the new model XQ320.

All solutions remain available, support and spare parts continues for 7 years.

Definition

Sysmex XP-300 is an automated haematology analyser allowing analysis of the main clinical parameters associated to haematology, including, total and differential (3-part) white blood count, platelets and haemoglobin.

Specifications

Parameters: haemoglobin measurements, white cell, red cell and platelet counts, red cell indices: 20 parameters

- WBC- NEUT%
- RBC- LYM#
- HGB- MXD#
- HCT- NEUT#
- MCV- RDW-SD
- MCH- RDW-CV
- MCHC- PDW
- PLT- MPV
- LYM%- P-LCR
- MXD%- PCT
Some restricted information has been hidden. Sign in to see this information

Components

  • Haematology ananlyser (apparatus)
  • Installation kit containing
    • 1x scs-1000 calibrator 2ml ref.216992:
      • Shelflife: 1 month!
      • Storage: between 5 and 30°C
    • 2x Control Eight-check normal 1.5ml ref.904-0611-6
      • Shelflife: 3 months!
      • Storage: keep refrigerated and must be transported by cold chain

Technical specifications

  • Format: all parameters using same reagents (see related articles below)
  • Method:
    • DC detection method (WBC, RBC, PLT),
    • Non-cyanide method (HGB),
    • Cumulative pulse height detection (HCT)
  • Sample: whole blood (volume of 50µl)
  • Throughput of 60 samples per hour
  • Linarity:
    • WBC 1.0 – 99.9 x103/µl
    • RBC 0.3 – 7.00 x106/µl
    • HGB 0.1 -25.0 g/dl
    • HCT 10.0 – 33.3 %
    • PL 10 – 999 x103/µl
  • Data output:
    • Alphanumerical display
    • Built-in thermal printer
  • Power supply: 230 V, 50-60 Hz
  • Operating conditions:
    • Temperature: 15ºC to 30ºC (optimum: 23ºC)
    • Relative humidity: 30% - 85%

Dimensions

Dimensions: 420 x 355 x 480 mm

Weight: 30 kg

Transport Dangerous Goods

  • UN3091: Lithium metal batteries packed with equipment
  • Class: 9
  • Packing instructions: 970 Section II
  • Limit per package:
    • Pax A/C (Passengers & Cargo Aircraft) = 5 kg
    • CAO (Cargo Aircraft Only) = 5 kg

Instructions for use

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

  • Air conditioning is necessary. Dust-free environment.
  • Installation to be done by authorised Sysmex distributor.
  • Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Maintenance

A maintenance contract is mandatory. Six-monthly maintenance to be performed by authorised Sysmex distributor.

Some restricted information has been hidden. Sign in to see this information

Content spare-parts kit: KIT KX21

[ELAEHAAS118]

  • 1x 44396878 AIR VALVE WTKVOI5-4-EPD
  • 10x 34635036 O-RING CR56OW
  • 1x BG804840 SILICONE GREASE H.V.G.
  • 1x 44250554 TUBE POLYURETHANE 1,8MMX3,4MM
  • 1x 44253387* TUBE POLYURETHANE 4MMIDX6MMOD
  • 1x 44252874 TUBE SILICONE 1/8IN X 1/4IN F7
  • 1x 44285039 TUBING NO.103
  • 1x 44368660 PRESSURE PARTS SET FOR PSL-21
  • 1x 44386649 VALVE SEAL (2 PORT) WTKVO19-1
  • 1x 44386763 VALVE SEAL (2 PORT)WTKVO19-12
  • 1x 36782071 BELLOWS WTH METAL NO.7
  • 10x 26652926 FUSE 250V2A NO.1 91 95 (EU)
  • 1x 44116347 PIPETTE NO.57
  • 1x 44319716 RELIEF VALVE 247 L-1 V -1 /8Z171
  • 10x 44235759 NIPPLE NO.73
  • 1x 46235205 TRANSDUCER BRUSH 1
  • 1x 44386652 VALVE SEAL (3PORT) WTKV019-2
  • 1x 44368656 VACUUM PARTS SET FOR PSL-21
