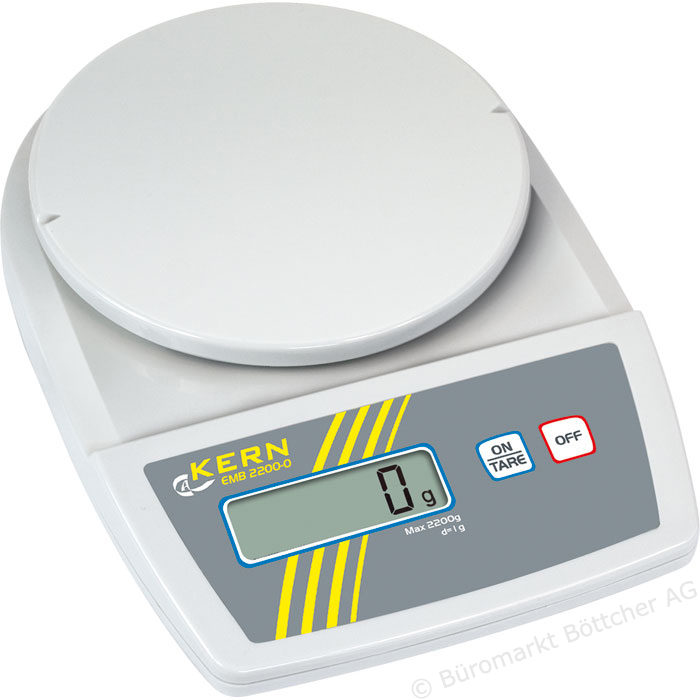

SCALE, electronic fr blood bag/medical use,0-2200g 1g (Kern)

STD ELAESCAE5--

Valid Article

Former Code(s): -X ELAESCAL5--
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
V030210 - Weighing scales (excluding those for neonatology)
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Documents See Related

Add article to list



Add Kit To Wishlist



SCALE, electronic, for blood bag/medical use

Definition

Measuring device, used to weigh blood bags during blood donation and for medical use.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Weighing up to 2200 g
  • Accuracy: 1 g
  • Weighing plate Ø 150 mm
  • Battery: 2x 1.5V AA, working period: 400 h
  • Operating temperature +5°C to +35°C
  • Air humidity 80% non-condensing
  • AUTO-OFF-Function (in battery mode): 3 min
  • A warm-up time of 3 minutes stabilises the measured values after switching on

Dimensions

170 x 240 x 39 mm

Packaging & Labelling

Volume/unit: 226 x 265 x 67 mm

Gross weight/unit: 0.7 kg

Instructions for use

Protect from dust and humidity

Maintenance

Please disconnect the device before cleaning.

Only use a cloth dampened with mild soap and not aggressive cleaning agents (solvents or similar). Please ensure that fluids are not able to get into the device and rub off using a clean, soft cloth. Loose sample residue/powder can be removed carefully using a brush or hand vacuum cleaner.

Remove any spilt material to be weighed immediately

MSF requirements

Scale with accuracy up to 1g, used for weighing blood bags in projects performing transfusion. This scale is cheaper than the laboratory scale with an accuracy of 0.01g.

The scale can also be used outside the laboratory for medical purposes: for weighing of nappies or dressings to precisely measure output of body fluids.
