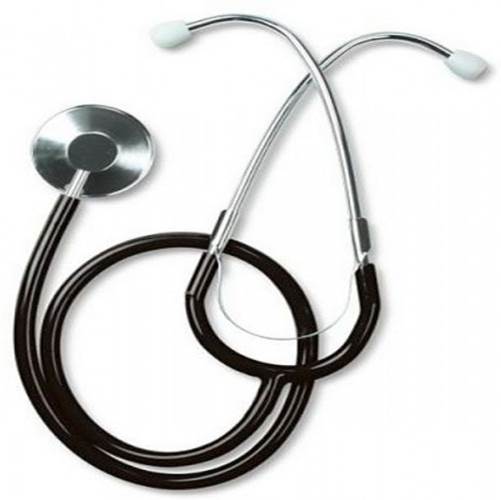

STETHOSCOPE, single head, adult diaphragm
Valid Article
STETHOSCOPE, single head
Definition
A mechanical listening device designed for listening to sounds from the heart, lungs, and/or gastrointestinal tract.
The chestpiece containing a diaphragm can be placed against the patient for sensing sound. Body sounds vibrate the diaphragm, creating acoustic pressure waves which travel up the tubing to the listener's ears. The sound is transmitted from the chest piece, via hollow tubes to the earpiece placed into the user's ears.
Synonym
acoustic stethoscope, nurse stethoscope
Specifications
- Single chestpiece made of aluminium alloy
- Epoxy glass fiber high-resolution diaphragm
- 43 mm, for adult model
- sensitivity 3.8 dB in a range from 50 to 500 Hz
- Treated rubber "Y" tube
- 10 mm diameter
- impervious to outside noises
- Stainless steel adjustable arms with flexible spring treated to give constant elasticity and large reliability and optimal comfort
- Removable plastic earpieces
- Dismountable, easy to clean and to disinfect
- Supplied with 1 spare diaphragm and 1 spare pair of earpieces
Instructions for use
Can be cleaned and disinfected with a detergent/disinfectant solution for surfaces / non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix with other products. Make sure to wet the surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.
Do not soak in a liquid.
Eartips can be removed from the eartubes for thorough cleaning.
