TIMER, breath counting

STD EMEQTIME1--

Valid Article

Former Code(s): -X
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

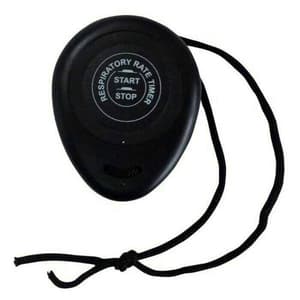

TIMER for counting respiratory rate

Definition

A countdown timer with a fixed 60 seconds' interval to assist medical staff to determine the respiration rate of newborns and young children in the context of suspected acute respiratory infection diagnosis. After starting the device, it will generate an audible beep after 60 seconds have passed. The medical staff is to count the respirations from starting the device until an audible beep sounds to determine the respiration rate.

Synonym

ARI timer

Specifications

Technical specifications

  • The unit is activated by pressing the center of the front-side of the device.
  • By pressing the start button the device provides:
    • an audible beep to indicate the countdown has started;
    • a red visual indicator informing the user that the device has been activated and is counting down (Each second flashing, till the timer is stopped or when it completes the one minute count)
    • a double audible beep after 60 seconds indicating the 60 seconds' period has passed and the visual indicator should cease indicating the unit has stopped counting down.
  • Pressing the button during an ongoing countdown resets the unit (= stop the countdown and the visual indicator).
  • The unit does not make any sounds during the countdown
  • Accuracy = ± 0.1 second.
  • The unit is battery powered and full batteries allow the unit to support 10 ,000 cycles of 60 seconds as a minimum.
  • Not replaceable battery
  • Weight: 0.050 kg
  • Volume: 0.207 dm2

Packaging & Labelling

Individually packed

Supplied with the Article

Cord for wearing timer around neck

To be Ordered Separately

Counting can be challenging for CHWs who are not literate. The counting beads with visual cues on when the breathing rate is in the abnormal range has been demonstrated to be helpful. At the end of 1-minute period if the beads are in the red category the patient has fast breathing and needs medical treatment.

These counting beads are not available through international purchase but must be found through local procurement/manufacturing.

Description of the counting beads:

  • One bead counted per breath
  • Age-specific:
    • children aged 2- 11 months
    • children 12 months to 5 years
  • Colour-coded
  • A set of two chains of beads with 2 possible models:
    • the beads of both chains have the same size, the longer chain is for the younger children (2-11months), the shorter for 1 to 5 years
    • chains have the same length, but different beads sizes. Larger beads size for older age group of 12 months to 5 years, smaller beads for children of 2-11 months.

The colour of the last 10 beads should be red and different from the colour of the first 40 or 50 beads (depending on the age of the child). There are no separator beads, and they are tied so that there is space for moving the beads across the string.

The beads are made from plastic and round shaped. The white/regular beads are larger in diameter (e.g. 16mm), while the red beads are smaller in diameter (e.g. 12mm).

Strands have a clasp so they can be used open (straight) or closed (like a necklace).
