BOW, WIRE TRACTION, BOEHLER 11 x 21 cm + NAIL, 76-44-03

https://unicat.msf.org/cat/product/13942
STD ESURBOWB11-

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L0908 - Orthopaedic and traumatological traction instruments, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIb
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

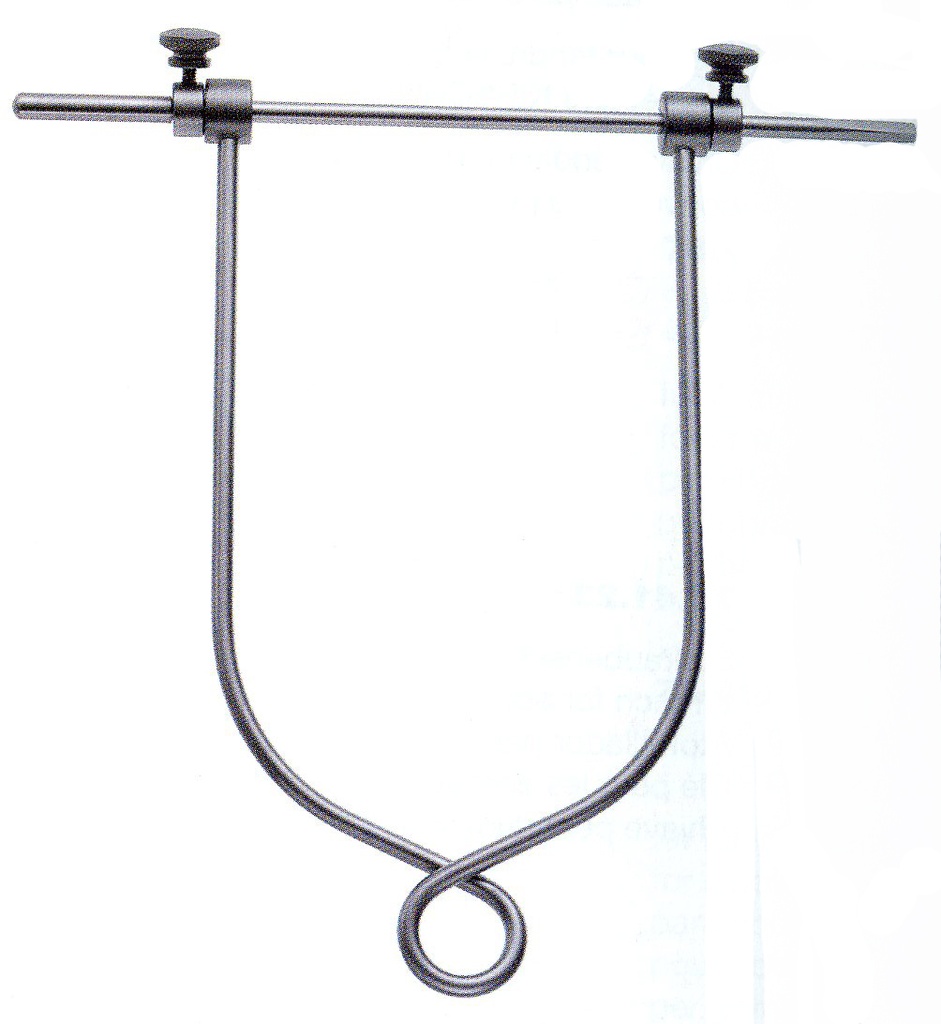

Wire traction bow, Boehler, with nail

Definition

Static function instrument: bow.

Attached to either end of a Steinmann pin (for femoral or tibial traction) and connected by a rope to a weight, the stirrup is used to apply traction on a limb:

  • transcondylar femoral or transtuberosity tibial for femoral fractures
  • transcalcaneal for tibial fractures

Synonym

Steinman pin holder

Specifications

Technical specifications

  • Material: martensitic steel
  • Traction bow of Boehler
    • with 2 tightening screws for pin
    • Length bow: 16 or 21 cm
    • Width bow: 9, 11 or 15 cm
  • with 1 nail of Steinmann Ø 4 mm (separate nails: see related articles)
    • ESURBOWB09-: L nail = 15 cm
    • ESURBOWB11-: L nail = 18 cm
    • ESURBOWB15-: L nail = 21 cm

Instructions for use

The bow must exert a constant traction on the pin without any compressive force.

Kirschner wires are not compatible with the Boehler traction bow
