CHISEL, STILLE, 20 cm, straight 20 mm, 28-43-20

https://unicat.msf.org/cat/product/13972
STD ESURCHIS20S

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L090401 - Orthopaedic surgery osteotomes, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
P
The order of this product needs to be justified and is only acceptable under certain conditions.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

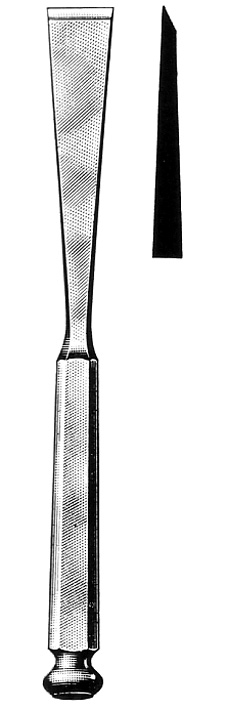

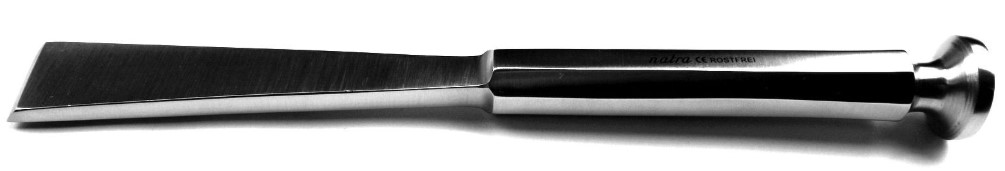

Chisel, Stille

Definition

A hand-held, single-blade surgical instrument, bevelled on one side, designed to cut and shape bone during orthopaedic surgery. It is hand-held by the operator who uses a surgical mallet or hammer to manually impart a force to the proximal end of the instrument. The distal end (the cutting or shaping edge) is sharp, and flat.

Specifications

Technical specifications

Chisel shears with single bevelled edge (unlike the osteotome shears which have a double bevelled edge)

  • Straight chisel
  • One-sided beveled tip with a sharp cutting edge
  • Tip is available in multiple sizes: 10 or 20 mm
  • Solid handle with a bottom circular surface, which receives the mallet impact for pushing the chisel against the bone
  • Total length = 20 cm
  • Martensitic steel

Instructions for use

Make sure the bevelled edge is sharp.
