ORTHOPAEDIC HAND DRILL, adj. handle with side crank 76-50-80

https://unicat.msf.org/cat/product/14053
STD ESURDRIL1--

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L090902 - Orthopaedic surgery trephines, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

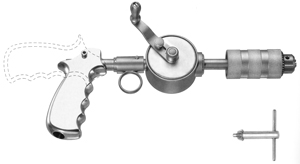

Orthopaedic hand drill with side crank

Definition

A manually-powered, hand-held, surgical device intended to be used to generate a rotary motion to an endpiece during a surgical procedure. This drill is typically used for the insertion of Steinman pins for skeletal traction.

The main design: a drill powered by the rotation of a side-mounted, handle; it may be cannulated to allow for use of a guidewire. The drill may have a Jacobs chuck or collet to hold the drill bit.

Specifications

Technical specifications

  • Hand drill with three-jawed chuck (Jacobs)
  • Adjustable handle (2 positions)
  • Axial channel for wires and pins
  • Supplied with wrench
  • Material:
    • Brace: austenitic steel
    • Chuck: chromed steel
    • Head of the brace: aluminium

Instructions for use

The chuck must be carefully cleaned.

The head of the brace is sensitive to scratching and should be lubricated with oil for instruments (see related articles below).

Some restricted information has been hidden. Sign in to see this information
