WIRE CUTTING PLIERS, HM, for 2.5 mm wires, 21 cm 76-45-43
STD
ESURPLIE21-
Valid Article
Account code:
60100
HS Code:
901890
Last Updated on:
22/11/2024, 22:22:17
Former
Code(s):
ESURFOCU21-
L091002 - Instruments for processing materials for osteosynthesis, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes

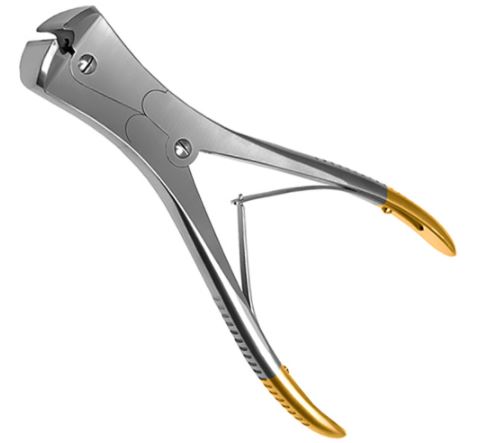

Wire cutting plier, HM
Definition
A heavy-duty, hand-held manual surgical instrument with sturdy handles and blade-like jaws designed to cut orthopaedic wires, cerclages, and small diameter pins or bolts. It has a scissors-like lever action with curved handles. The cutting blades (typically short, strong and with obtuse cutting edges) at the working end are activated through a single or double-jointed pivot that transfers the necessary shearing/cutting force. Commonly known as wire cutting pliers the blades can have a front cutting action; some may have carbide inserts for greater durability.
Specifications
Technical specifications
- Front cutter pliers
- Perfect cutting edge of the jaws
- Heavy pattern for hard wires up to max 2.5 mm Ø
- Length: 21.5 cm
- Material: martensitic steel with tungsten carbide welded cutting edges "HM"
Instructions for use
Used for cutting the Kirschner wires to the required length once they have been inserted.
