NEEDLE GAR, spring eye, 5/8, round, 25 mm, non ster. 498-08

https://unicat.msf.org/cat/product/14152
STD ESURNEGAR08

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L0202 - Suture needles, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Suturing needle GAR/T, spring eye

Definition

Reusable surgical needle: muscular and skin needle.

Specifications

Technical specifications

  • Suture needle

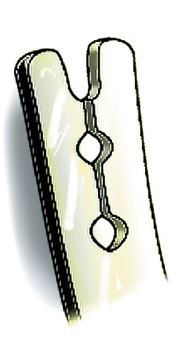

  • Spring eye
  • Curve: 5/8 circle
  • Point: round for the GAR needles, trocar for the GAT needles
  • Sizes:
    • n°11: Ø 0.8 mm x 16 mm length
    • n°10: Ø 0.8 mm x 19 mm length
    • n°9: Ø 0.9 mm x 22 mm length
    • n°8: Ø 1.0 mm x 25 mm length
    • n°7: Ø 1.1 mm x 30 mm length
    • n°6: Ø 1.3 mm x 35 mm length
    • n°5: Ø 1.3 mm x 40 mm length
    • n°4: Ø 1.3 mm x 45 mm length
    • n°3: Ø 1.5 mm x 50 mm length
    • n°2: Ø 1.6 mm x 55 mm length
  • Reusable
  • Material: martensitic steel

Packaging & Labelling

Usually, the needles come in packages of 12 needles (same size).

Instructions for use

Used for the obstetric fistulas repairs.

The needles are supplied non sterile and as the other surgical instruments, they need to be autoclaved before use.
