RETRACTOR SELF-RETAINING, 10cm 4x4 prongs blunt 6mm 24-09-10

https://unicat.msf.org/cat/product/14230
STD ESURRESR10-

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L03140101 - Self-static spreaders, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

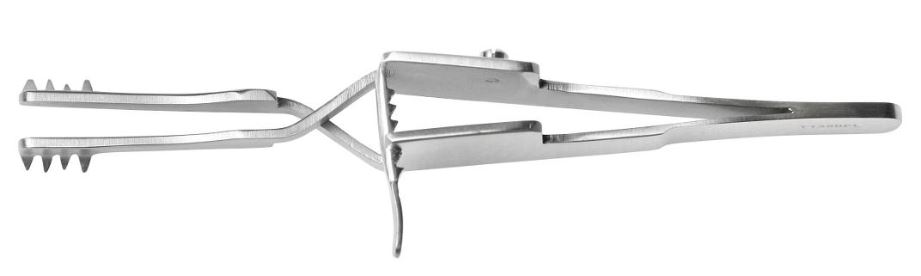

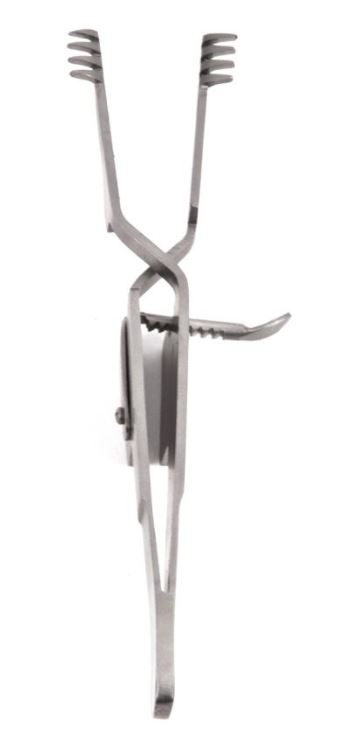

Self-retaining retractor

Definition

A self-locking, surgical instrument, used for separating the edges or drawing aside the margins of a surgical incision, tissue or other body parts to expose or access underlying anatomical structure during a surgical procedure.

The instrument is a hinged device with two legs with wide-angle blades which have fenestrated curved hooks terminating in points at the distal end to grasp the tissue. It will retain the set open position.

Synonym

Holzheimer or Heiss retractor

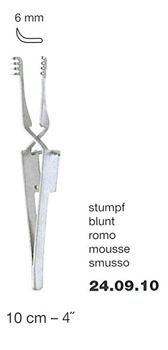

Specifications

Technical specifications

  • Self-retaining retractor with two arms
  • Prongs: 4 x 4 blunt
  • Depth prongs: 6 mm
  • Length: 10 cm
  • Material:
    • Main component material : martensitic steel
    • Other part material: austenitic steel

Instructions for use

Make sure the prongs remain blunt to prevent any risk of injury.
