SPECULUM, VAGINAL, SIMS, double ended, set 3 sizes 52-20-00

STD ESURSPVS3--

Valid Article

Former Code(s): ESURREVS3--
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L059001 - Vaginal speculums, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

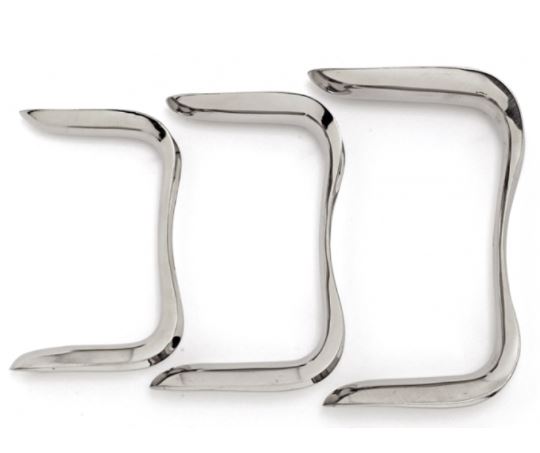

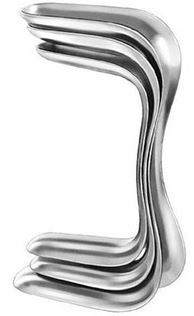

Vaginal speculum, Sims

Definition

A hand-held manual instrument intended to dilate the vagina after insertion, typically for visual examination of the vaginal canal and cervix and/or to perform a gynaecological procedure.

Specifications

Technical specifications

  • Single blade speculum with blunt lateral edges
  • Hollow blade
  • Double-ended
  • Material: austenitic steel
  • Set of 3 sizes:
    • size 1: 70 x 25 mm and 75 x 30 mm
    • size 2: 75 x 30 mm and 80 x 35 mm
    • size 3: 80 x 35 mm and 90 x 40 mm

Packaging & Labelling

Packed per set (one of each size)

Instructions for use

Sims' speculum is inserted into the vagina to retract posterior vaginal wall. It gives more exposure of the vaginal walls than Cusco's Speculum and therefore is preferred for gynaecological surgeries. It is possible to slide the instrument around the vaginal wall to enable better visualization. The groove in the middle of Sims' speculum allows free flow of secretions and blood to the outside, thereby keeping the area dry. The disadvantage of Sims' speculum is that it is not self-retracting.

These speculums are smaller than the retractors of Doyen or Auvard and are indicated for children, young adolescents and small women.

Make sure the lateral edges remain blunt to prevent any risk of injury.
