(saw, Gigli) WIRE, GIGLI, 50 cm 57-64-50

STD ESURSAWG50-

Valid Article

Former Code(s): -X
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L010701 - Manual surgical saws, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



Gigli saw

Definition

A hand-held manual surgical instrument used in orthopaedic or neurological surgery for cutting bone through a sawing action performed by the operator. It consists of two handles. The handles can be easily unhooked to permit entry of the wire into a narrow opening, e.g., holes drilled in the top of the skull through which the flexible wire is fed for sawing of the skull prior to removal of the top section. This device is commonly known as a Gigli saw.

Specifications

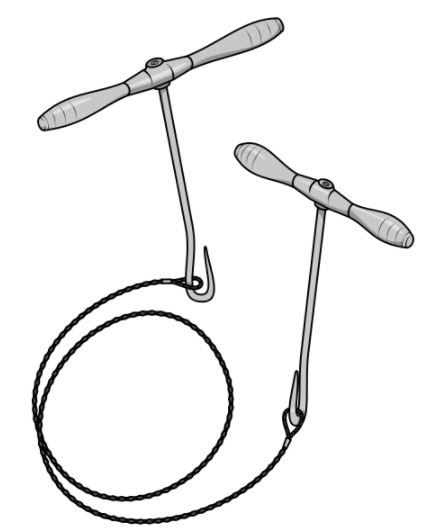

In their simplest form, Gigli saws are comprised of two handles and an extremely flexible blade. The blade is made with a thin collection of stainless steel wires that are methodically twisted into barbs, thus creating cutting surfaces along all edges and sides. Each end of the blade is then finished with a loop that is engineered to accept a variety of different detachable handles. During amputation, surgeons pull back and forth on each handle, applying varying amounts of pressure and speed to generate sawing motions. The twisted wires simulate a serrated blade with 360 degrees of flexible cutting surface, making quick work of the removal.

Technical specifications

HANDLE (always by pair)

  • T-handle, ended by a hook
  • Material: martensitic steel

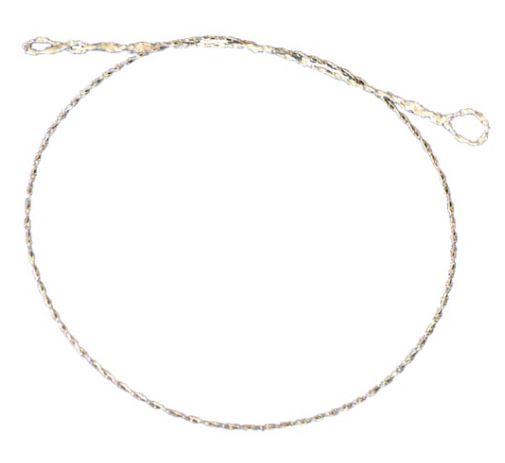

WIRE

  • Composed of multiple flexible wires twisted in such a way as to create multiple cutting surfaces
  • Ring at either end enabling its attachment to the T-handles
  • Length: 50 cm
  • Material: austenitic steel

Instructions for use

Precautions for Use

Wire for single use due to the amount of organic material embedded in the wiring during procedure.

The wire is a very sharp item to be handled with care to prevent any risk of injury!
