SPECULUM, VAGINAL, COLLIN, extra small, 90 x 16 mm 52-10-11

https://unicat.msf.org/cat/product/14305
STD ESURSPVC16-

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L059001 - Vaginal speculums, reusable
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Vaginal speculum, Collin

Definition

A hand-held manual instrument intended to dilate the vagina after insertion, typically for visual examination of the vaginal canal and cervix and/or to perform a gynaecological procedure. It consists of two long blades, joined at a handle at one end, that are inserted into the vagina in a horizontal position and then opened at an angle.

Specifications

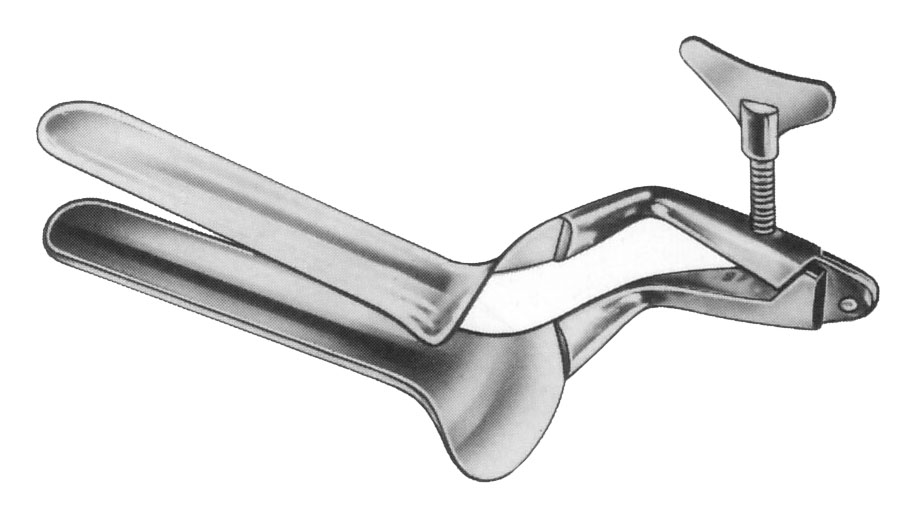

It is a double blade duckbill speculum inserted with the blades closed. The blades are then opened by an external lever and screw. Unlike many other vaginal specula, there is no handle with the Collin device and the blades open laterally/horizontally versus vertically.


Technical specifications

  • Self-retaining vaginal speculum
  • Model Collin
  • Composed of 2 blades mounted on a screw, enabling their opening to be gradually adjusted
  • 2 sizes, the small one is used for women and girls for whom the standard speculum size is too large
  • Material: austenitic steel

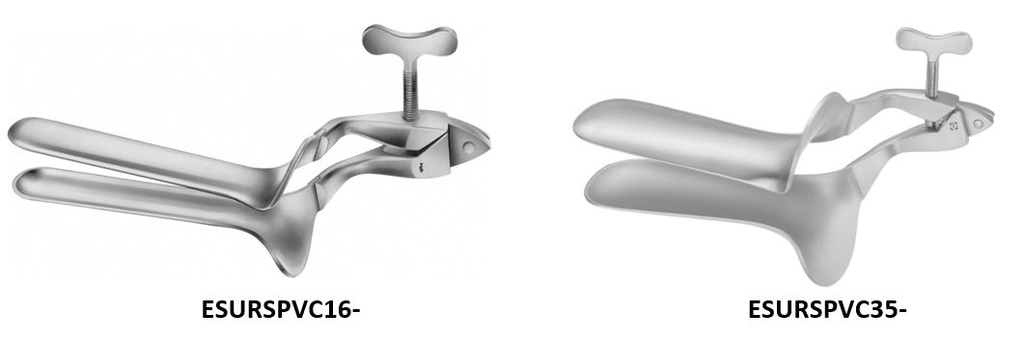

Size of the blades

width

length

ESURSPVC16-

virgin

16 mm

90 mm

ESURSPVC35-

standard

35 mm

100 mm

Instructions for use

Make sure the thread is clean for a proper tightening of the screw.

Must be open for sterilization.
