KIT UHF, TRANSCEIVER, 5 handsets (ICF4062T) + base (ICF6061)
Discontinued Article
KIT UHF, TRANSCEIVER, 5 handsets + base
Definition
This article is discontinued. Kindly use codes for newer models.
Complete set of equipment for installing a wide band, programmable, UHF radio network, intended for short-distance communications.
Not very often used in the field, except in Angola and Colombia (95% of missions are in VHF).
Indications
Includes 1 transceiver, 5 handsets and 1 fixed antenna.
Items of which transport is regulated are packaged separately and included in a "RTR" (regulated transport) module.
For the specifications, see the Logistic catalogue.

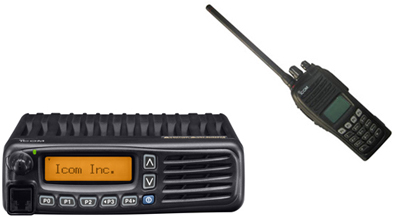

UHF handset
CLOSED ARTICLE (Icom IC-F4062T)
Accessories are the same as for the IC-F3062T, except antennas.
UHF transceiver
CLOSED ARTICLE (Icom IC-F6061)
UHF antenna
CLOSED ARTICLE (Kathrein K751121)
Instructions for use
Always inquire about local authorizations to be obtained.
Wide band, duplex mode, and front panel programming allow the communication with other operators (except if they use VHF equipment), and the use of a repeater.
Radios are pre-programmed on standard frequencies, for immediate use.
NEVER transmit without antenna.
The antenna of the handset is fragile and is not a carrying handle. The handset range depends on environmental conditions, and is 8 km maximum.
ALWAYS USE THE PROTECTIVE SOFT CASE SUPPLIED WITH THE HANDSET.
The antenna of the base station should be erected as high as possible. The base station range depends on the antenna height, and is 30 km maximum. The base station should ideally be placed in the middle of the site, with a permanent operator in charge of relaying the messages, in order to extend the communication network.
For special situations (longer distance, repeater...), please contact your technical department.
Precautions for Use
The kit does not include the antenna mast which should be purchased locally or ordered separately (see related articles below).
Packaging
Aluminium suitcase, to be transported as hand luggage.
Transport Dangerous Goods
WARNING:
Item classified as hazardous good by IATA, UN3481 - Lithium ion batteries contained in/with equipment, section II (PCOMVHFAI0TBL).
