KIT VHF, TRANSCEIVER, 5 handsets (ICF3162T) + base (ICF5061)

https://unicat.msf.org/cat/product/15016
STD KCOMKVHF11-

Outdated Article

Former Code(s): -X
UN3481
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

KIT VHF (ICF3162T) 5 handsets + base (ICF5061)

Definition

This kit will be phased out as there are newer models.

Complete set of equipment for installing a wide band, programmable, VHF radio network, intended for short-distance communications.

Indications

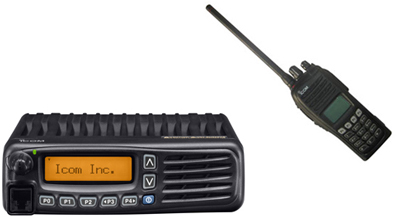

Includes 1 transceiver, 5 handsets and 1 fixed antenna.

Items of which transport is regulated are packaged separately and included in a "RTR" module (regulated transport).

For the specifications, see the Logistic catalogue.

VHF handset

CLOSED ARTICLE (Icom IC-F3162T)

VHF transceiver

CLOSED ARTICLE (Icom IC-F5061)

Remark

The standard VHF handset for MSF-OCP missions is Icom IC-F3062T

MSF-OCA supplies a transceiver of another brand, but with similar specifications (Kenwood TM 271).

VHF antenna

CLOSED ARTICLE (Kathrein K711530)

Instructions for use

Always inquire about local authorizations to be obtained.

Wide band, duplex mode, and front panel programming allow the communication with other operators (except if they use UHF equipment), and the use of a repeater.

Radios are pre-programmed on standard frequencies, for immediate use.

NEVER transmit without antenna.

The antenna of the handset is fragile and is not a carrying handle. The handset range depends on environmental conditions, and is 8 km maximum.

ALWAYS USE THE PROTECTIVE SOFT CASE SUPPLIED WITH THE HANDSET.

The antenna of the base station should be erected as high as possible. The base station range depends on the antenna height, and is 30 km maximum. The base station should ideally be placed in the middle of the site, with a permanent operator in charge of relaying the messages, in order to extend the communication network.

For special situations (longer distance, repeater...), please contact your technical department.

Precautions for Use

The kit does not include the antenna mast which should be purchased locally or ordered separately (see related articles below).

Packaging

Aluminium suitcase, to be transported as hand luggage.

Transport Dangerous Goods

WARNING:

  • item classified as hazardous good by IATA, UN3481 - Lithium ion batteries contained in/with equipment, section II
  • Not restricted as per special provision IMDG 188
