KIT, MANUAL FUEL DELIVERY and FILTRATION
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
KIT, MANUAL FUEL DELIVERY and FILTRATION
Definition

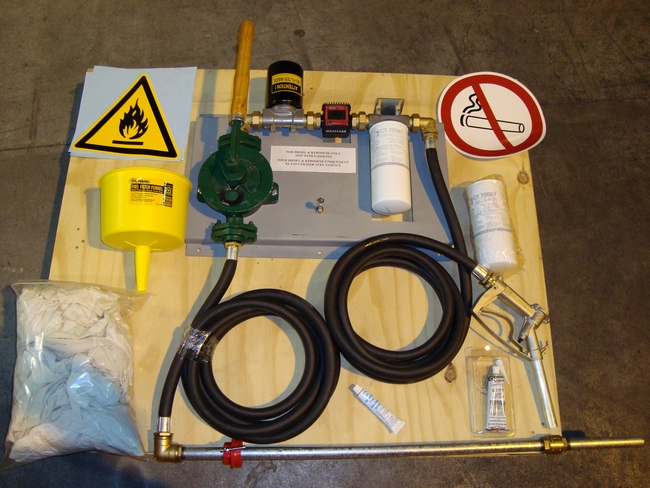

Portable manual pump with hoses, nozzle and water separator filter designed to pump fuel from 200 litre drums or a tank.
Used for refuelling vehicles.
Instructions for use
Intended for all missions with a small stock of fuel in 200 litre drums. Compatible for all types of fuel, especially petrol and diesel. This type of installation is convenient for small volumes and/or short duration. If not, a more sizable installation with tank and electrical fuel distribution pump, allows for a better management with regards to quality and follow-up.
It is recommended to have one pump for each type of fuel.
Choose a colour for each type of fuel and mark all the related articles (jerrycans, drums, pumps...).
- At the reception of goods, check your drums with the water detecting paste.
- Before pumping, the drum or tank should rest for 3 days to allow the fuel to settle.
Filter the bottom of a drum with the water retention filter funnel.
![[PHYGCLOTSCK] CLOTH, cotton, for workshop, per kg](/web/image/product.template/553561/image_256/%5BPHYGCLOTSCK%5D%20CLOTH%2C%20cotton%2C%20for%20workshop%2C%20per%20kg?unique=2e99ee3)
![[PSAFSTICF25P] STICKER flammable, 250x250mm, pictogram](/web/image/product.template/548687/image_256/%5BPSAFSTICF25P%5D%20STICKER%20flammable%2C%20250x250mm%2C%20pictogram?unique=5beb738)
![[PSAFSTICS32P] STICKER no smoking, 320x320mm, pictogram](/web/image/product.template/548647/image_256/%5BPSAFSTICS32P%5D%20STICKER%20no%20smoking%2C%20320x320mm%2C%20pictogram?unique=5beb738)
![[TVEAFUNN21W] FUNNEL + FILTER water separator, Ø 216mmx250mm](/web/image/product.template/553004/image_256/%5BTVEAFUNN21W%5D%20FUNNEL%20%2B%20FILTER%20water%20separator%2C%20%C3%98%20216mmx250mm?unique=53ec84a)
![[TVEAPUMPFMW] PUMP by hand, for fuel + water filter + counter + nozzle](/web/image/product.template/552151/image_256/%5BTVEAPUMPFMW%5D%20PUMP%20by%20hand%2C%20for%20fuel%20%2B%20water%20filter%20%2B%20counter%20%2B%20nozzle?unique=0e1cc49)
![[TVECFILTHW-] (manual fuel pump) FILTER water retention (Hydrosorb)](/web/image/product.template/549694/image_256/%5BTVECFILTHW-%5D%20%28manual%20fuel%20pump%29%20FILTER%20water%20retention%20%28Hydrosorb%29?unique=27f167f)
![[TVECPASTWT-] WATER DETECTING PASTE, for fuel, tube](/web/image/product.template/553543/image_256/%5BTVECPASTWT-%5D%20WATER%20DETECTING%20PASTE%2C%20for%20fuel%2C%20tube?unique=72b7bb5)
![[TVECSEALTYM] THREAD SEALANT (Loctite 577) 50ml, medium, yellow, btl](/web/image/product.template/553581/image_256/%5BTVECSEALTYM%5D%20THREAD%20SEALANT%20%28Loctite%20577%29%2050ml%2C%20medium%2C%20yellow%2C%20btl?unique=1ab3115)
