KIT, PATIENT TRANSPORT, for HZJ78, 11 seats
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
KIT, PATIENT TRANSPORT
Definition

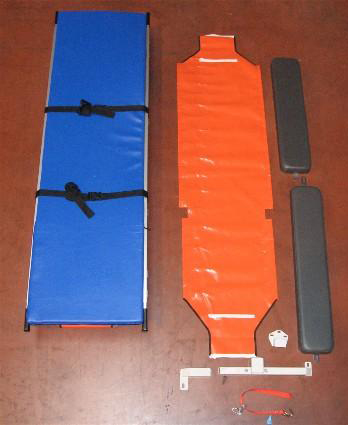

Stretcher with wheels, with an adjustable back, allowing the transportation of one patient while lying down. The stretcher is suitable for a standard MSF vehicle HZJ78 with 11 seats. This kit can be setup or disassembled within one hour, with basic tools, in place of rear right side seats.
Indications
Closed article
- Washable stretcher with adjustable back including canvas on an aluminium frame, mattress and straps, mounted on 4 articulated lockable wheels. Including a spare canvas.
- Mounting parts to be installed in a vehicle on the bench fittings on the right side.
- Side backs
- Strap with tensioner for ground hooking
Material
- Plasticised canvas and mattress
- Aluminium frame
- Painted steel support
Technical specifications
- Necessary tools: wrench 10, 12 and 13
- Telescopic handles
Instructions for use
This kit can be shipped easily on any field location and setup in our standard vehicles without special skills or tools.
Keep benches and removed elements (belts) for potential return to previous condition of the vehicle, after end of use of the kit.
Stretcher is strong enough to be used as a bench for seated passengers. Warning: limit this use to short trips.
Use usual protocols to clean the vehicle.
This kit doesn't turn a car into a real ambulance.
