KIT, MOTOR PUMP, DIESEL, 62 m³/h max, 28 m max, 3"

Definition

Surface centrifugal pump, delivering maximum 28 metre head and 62m³/h maximum flow. Powered by a diesel Lombardini 15LD engine. All mounted in a metallic frame.


Indications

Pump specifications:

  • Max 62 m³/h
  • Max 28 m.
  • Suction and discharge diameter: 3"

Motor specifications:

  • Lombardini 15LD motor
  • Air cooling

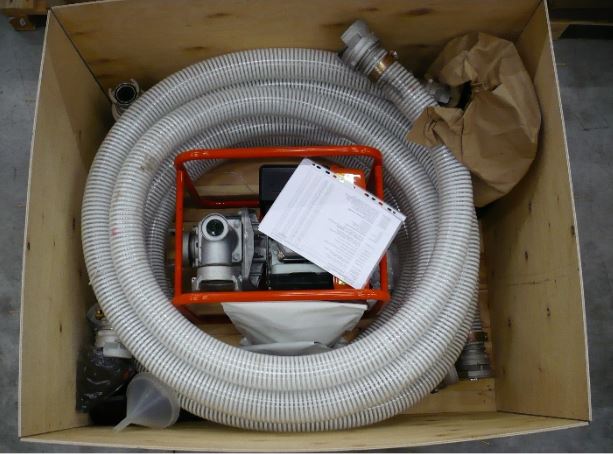

    KIT

    The kit contains all the accessories and consumables required for the functioning and maintenance of the pump. Its exact composition could differ according to the model of pump which is supplied.

    Instructions for use

    To be used for pumping clear water only (turbid water would damage the pump).

    Kit supplied with user manual.

    Check that the performance curve of the pump suits your situation:

    • Fill the oil pan prior to first use and check the level daily.
    • Check the fuel quality (no water or impurities). Use the funnel with water retention filter to fill the tank.
    • For the suction, use only the long spiral hose and strainer supplied in the kit.
    • On the discharge side, the 3" outlet assemblies (short spiral hose + gate valve and non-return valve) must be connected in between the pump and the pipeline to ease the disconnection of the pump and to prevent water hammering.
    • It is possible to create a large distribution system with the pump delivering water from a reservoir directly to several tap stands without needing gravity. In this case, it is necessary to integrate the little piece of spiral hose and the T-piece (included in the kit) for the recirculation of water towards the reservoir when all taps are closed.
    • Prime the pump with water before starting.
    • Train the staff in proper operation, follow-up and maintenance of the pump.
    • Maintenance: every 100 hours. Fill in the maintenance logbook.

    For more detailed information and instructions see also the Owner's manual (integrated in kit) and "Public Health Engineering in Precarious Situations", MSF, 2nd edition, 2010:

    • T.B. 2.25 Centrifugal pumps
    • T.B. 2.28 Motor pump kit installation
      Some restricted information has been hidden. Sign in to see this information
      [CWATBANDH85] BAND CLIP high pressure, Ø 80-85mm, simple tightening CWATBANDH85 STD BAND CLIP high pressure, Ø 80-85mm, simple tightening 6 mandatory
      [CWATCBVAFT3IF] NON-RETURN VALVE flapping, brass, 3", FxF threaded CWATCBVAFT3IF STD NON-RETURN VALVE flapping, brass, 3", FxF threaded 1 mandatory
      [CWATCGCOL13IM] LONG TUBE COUPLING threaded, galvanized, Ø 3", 100mm, MxM CWATCGCOL13IM STD LONG TUBE COUPLING threaded, galvanized, Ø 3", 100mm, MxM 1 mandatory
      [CWATCGELT93IX] ELBOW COUPLING 90° threaded, galvanized, 3", FxM CWATCGELT93IX STD ELBOW COUPLING 90° threaded, galvanized, 3", FxM 1 mandatory
      [CWATCSEM32IL] REDUCER HALF-COUPLING symmetrical, 3"-2" + lock CWATCSEM32IL STD REDUCER HALF-COUPLING symmetrical, 3"-2" + lock 1 mandatory
      [CWATCSEMG73L] REDUCER HALF-COUPLING symmetrical, 3"-75mm, grooved + lock CWATCSEMG73L STD REDUCER HALF-COUPLING symmetrical, 3"-75mm, grooved + lock 4 mandatory
      [CWATCSEMT3I0M] SYMMETRICAL HALF-COUPLING, 3", male thread, w/o lock CWATCSEMT3I0M STD SYMMETRICAL HALF-COUPLING, 3", male thread, w/o lock 2 mandatory
      [CWATHOFD3PM2-] HOSE flat, 3", min. NP15, for delivery, per metre CWATHOFD3PM2- STD HOSE flat, 3", min. NP15, for delivery, per metre 25 mandatory
      [CWATPUMEDL1] MOTOR PUMP diesel (Lombardini 15LD) 62m³h/28m, 3" CWATPUMEDL1 STD MOTOR PUMP diesel (Lombardini 15LD) 62m³h/28m, 3" 1 mandatory
      [CWATSEALTT9] TAPE (Teflon) 19mmx15m, 0.2mm thick, roll CWATSEALTT9 STD TAPE (Teflon) 19mmx15m, 0.2mm thick, roll 5 mandatory
      [CWATSTRA3N8] STRAINER non-return, 3" ND80 + spiral hose 8m + couplings CWATSTRA3N8 STD STRAINER non-return, 3" ND80 + spiral hose 8m + couplings 1 mandatory
      [CWATTOOLH23] HOOK SPANNER, 2"-3", for Guillemin coupling CWATTOOLH23 STD HOOK SPANNER, 2"-3", for Guillemin coupling 2 mandatory
      [PTOOHEXAS07OM] SET OF 7 HEXAGONAL KEYS, 2.5-10mm + holder, 86H.JE7A PTOOHEXAS07OM STD SET OF 7 HEXAGONAL KEYS, 2.5-10mm + holder, 86H.JE7A 1 mandatory
      [PTOOMEASVHC] HOUR COUNTER vibration, with button battery PTOOMEASVHC STD HOUR COUNTER vibration, with button battery 1 mandatory
      [PTOOSTORBSVT] TOOLBAG soft, for vehicle PTOOSTORBSVT STD TOOLBAG soft, for vehicle 1 mandatory
      [PTOOWRENC013] COMBINATION WRENCH 12 point, 13mm, metric, 440.13 PTOOWRENC013 STD COMBINATION WRENCH 12 point, 13mm, metric, 440.13 1 mandatory
      [TVEAFUNN21W] FUNNEL + FILTER water separator, Ø 216mmx250mm TVEAFUNN21W STD FUNNEL + FILTER water separator, Ø 216mmx250mm 1 mandatory
      [TVEAJERR2MR] JERRYCAN, metal, 20l, for fuel TVEAJERR2MR STD JERRYCAN, metal, 20l, for fuel 1 mandatory
      [TVECOILE5405] ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can TVECOILE5405 STD ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can 1 mandatory
      [YLOM2175-128] FILTER, AIR, 2175 128,for Lombardini engine 15LD315 YLOM2175-128 STD FILTER, AIR, 2175 128,for Lombardini engine 15LD315 2 mandatory
      [YLOM2175-129] FILTER, OIL, 2175 129,for Lombardini engine 15LD315 YLOM2175-129 STD FILTER, OIL, 2175 129,for Lombardini engine 15LD315 1 mandatory
      [YLOM3730-088] FILTER, GASOIL, 3730 088, for Lombardini engine 15LD315 YLOM3730-088 STD FILTER, GASOIL, 3730 088, for Lombardini engine 15LD315 3 mandatory
