HF ANTENNA folded dipole, 3-30Hz, HF, wideband
STD
PCOMRHFE0AD3
Valid Article
Account code:
61160
HS Code:
852910
Last Updated on:
22/10/2024, 13:27:12
Former
Code(s):
PCOMANHF1D-
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

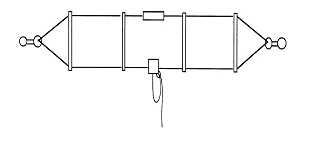

HF ANTENNA folded dipole, 3-30Hz
Definition
HF antenna, bidirectional, wide-band, with passive matching, supplied with installation kit.
Specifications
CLOSED ARTICLE
- Type: folded dipole. No tuner needed.
- Frequency range: 3 - 30 MHz (SWR < 3)
- Length: 29.7 m, fixed
- Provided with installation kit (Barker & Williamson FDMK)
- OCB: the provided antenna is a Codan 411
Instructions for use
Before installing the antenna, the radio must be turned off and the power cable must be disconnected.
To connect 2 antennas to one radio, use a bidirectional coaxial switch.
Installed as an inverted "V", the antenna gives the best performance over short and medium distances and becomes more omnidirectional.
Some restricted information has been hidden. Sign in
to see this information
