VHF ANTENNA mobile, 5/8 wave, magnetic base + cable PL259

https://unicat.msf.org/cat/product/16221
STD PCOMVHFA0AM5M

Valid Article

Former Code(s): PCOMANVHM58 PCOMZFRANVM58F
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

ANTENNA, VHF, mobile, 5/8 wave

Definition

Mobile VHF whip antenna.

Allows omnidirectional transmission and reception at a specific frequency according to the length of the whip.

These antennas are included in the VHF kits and are used in a vehicle, with a handset or with a base station.

Specifications

CLOSED ARTICLE

  • Mobile monopole 5/8 wave whip antenna
  • Frequency range: 146 - 174 MHz
  • Length: 138 cm

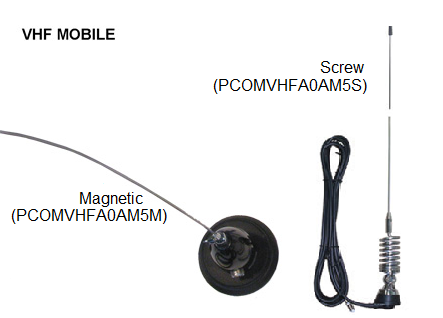

  • Comes in 2 models:
    • PCOMVHFA0AM5M => magnetic base
    • PCOMVHFA0AM5S => screw base

Instructions for use

NEVER transmit without an antenna.

The magnetic base model is intended for temporary installations. The magnetism is strong enough to hold the antenna in place at cruising speed on country roads.

The screw model is recommended for long-term installations.

Both models are preset to the field operation frequency, enabling immediate transmission and reception at 157 MHz, and ensuring good transmission at the most frequently used MSF frequencies (Tx 156.500 to 163.175, Rx 156.500 to 158.175 MHz). The use of other frequencies must be specified when ordering.

Keep the antenna vertical (do not angle it backwards to look "sporty" as this decreases the coverage).

Coverage will depend on environmental conditions.

  • Avoid transmitting from inside vehicles, buildings or enclosed places.
  • Place the antenna as high as possible, and as far as possible from buildings or walls.
