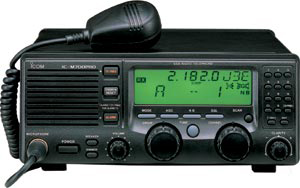

HF TRANSCEIVER (Icom IC-M700PRO) 150 channels
STD
PCOMRHFEI7PT
Valid Article
Account code:
61160
HS Code:
852560
Last Updated on:
11/12/2024, 20:28:39
Former
Code(s):
PCOMTRHFPRO PCOMZFRIC7000
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
HF TRANSCEIVER (Icom IC-M700PRO)
Definition
Wide-band programmable HF radio with scanning option.
Model designed to be installed as a base station only.
Allows data transmission via a modem.
Specifications
- Modes: USB and LSB (voice transmission), AM (broadcast radio), CW, AFSK and FSK
- Programmable channels: 150
- Frequency range: 1.6 - 27.5 MHz
- Runs on 12 V DC battery
- Codan power cable
- Internal fan
- Consumption:
- no signal (standby): 2.5 A
- transmission: 30 A maximum
- Power output:
- 140 W maximum
- 80 W above 24 MHz
- To be used with a dipole, quad loop or D2T antenna
Remark
This radio has no selcall function. Nevertheless, it allows transmission of selective calls provided it is equipped with the Call One module (see "Related Articles").
Some restricted information has been hidden. Sign in
to see this information
Instructions for use
See user's manual included in module.
NEVER transmit (push the PTT button) without an antenna connected.
For any problem concerning signal quality, installation or antenna selection (poor SWR, skip zone, orientation) contact your technical department.
Some restricted information has been hidden. Sign in
to see this information
MSF requirements
Data transmission enabled.
