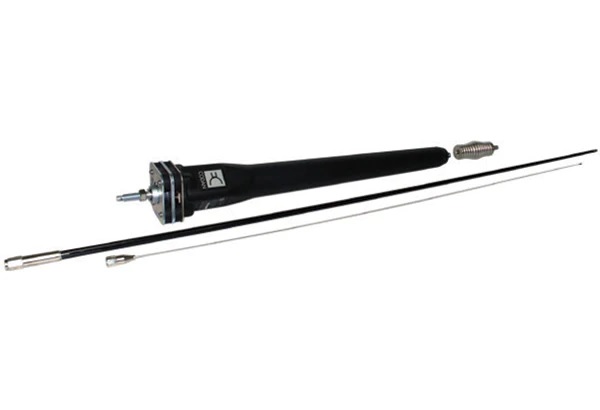

HF ANTENNA + TUNER (Codan 9350) + whip + spring
STD
PCOMRHFAC93AT
Valid Article
Account code:
61160
HS Code:
852560
Last Updated on:
22/10/2024, 10:51:32
Former
Code(s):
PCOMTUHF50-
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
HF ANTENNA + TUNER (Codan 9350)
Definition
Omnidirectional HF antenna/tuner, wide-band, with active tuning, for mobile use.
Specifications
CLOSED ARTICLE
- Automatic tuner
- Fibreglass whip antenna
- Heavy duty spring
- Impedance: 50 ohms
- Frequency range: 2.5 - 30 MHz
- Length: 2.2 m, fixed
- To be used with Codan radios only
- Supplied with an additional metal whip
Instructions for use
Before installing the antenna, the radio must be turned off and the power cable must be disconnected.
Caution: the fibreglass whip antenna is flexible but fragile. Remember to unmount it before entering woodland to prevent it from getting broken by branches.
The metal whip is intended to be used only if the fibreglass whip is broken.
The antenna should be installed at the front of the vehicle where it is visible to the driver, between the bonnet and the bull-bar in order to be protected in case of collision. The connectors should be directed towards the rear of the vehicle and protected with vulcanizing tape.
