MULTIMETER, digital, accurate, true-RMS

STD PELEMEASMD-

Valid Article

Former Code(s): PELEMULT02-
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

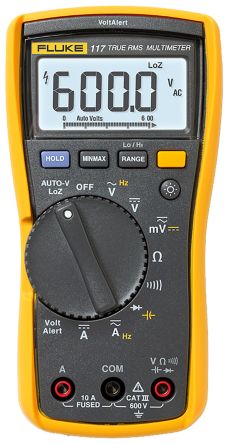

MULTIMETER, digital, accurate, true-RMS

Form

Digital multimeter, accurate, with internal battery. Open article. Per piece with cables.

Specifications:

  • True RMS reading
  • AC voltage:
    • from 0.06 to 600 V
    • from 6 to 600 mV
  • frequency: from 5 Hz to 50 kHz
  • DC voltage:
    • from 0.001 to 600 V
    • from 0.1 to 600 mV
  • resistance: from 0.1 Ω to 40 MΩ
  • continuity beeper goes on at < 20 Ω and turns off at > 250 Ω
  • diode test: displays OL above 2.0 V
  • farads: from 1 nF to 9999 µF
  • AC current from 0.1 A to 10 A
  • DC current from 0.001 A to 10 A

Fit

Includes:

  • test lead set (TL75)
  • 9V Battery
  • integrated holster

Function

Used for testing presence of voltage or continuity, this model is to check precisely and with accuracy.
