URINARY CATHETER, FOLEY 2 way, balloon, sterile, s.u., CH16

STD SCTDCAUR16F

Valid Article

Former Code(s): -X
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
U010201 - Urethral prostatic and bladder catheters, Nelaton, with balloon
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

URINARY CATHETER, FOLEY

Definition

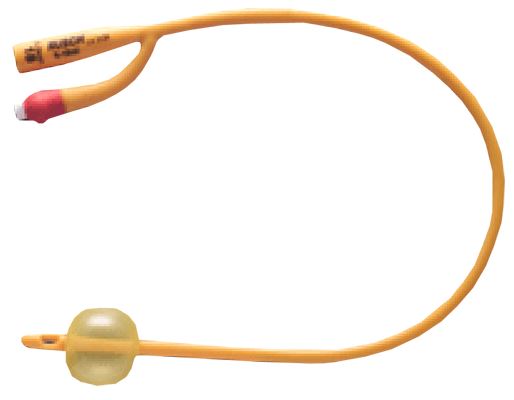

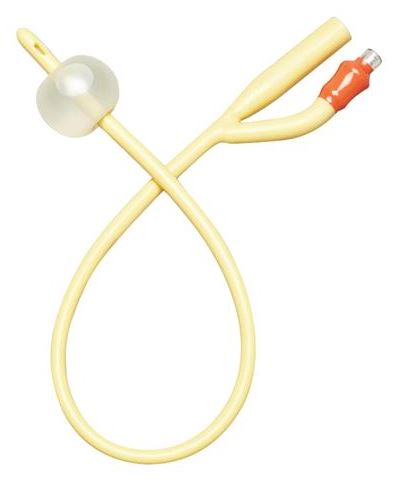

Foley urinary catheters are sterile, flexible tubes with an inflatable balloon at the distal tip intended to be inserted through the urethra and retained in the urinary bladder to function as an indwelling therapeutic device: they drain the bladder but block the urethra.

They have double lumens, or separate channels, running down it lengthwise = two-way catheters.

They are used in case of urinary incontinence (e.g., following a urological surgery procedure), or to void for non-ambulatory patients.

Synonym

Foley catheter, urethral catheter with balloon

Specifications

Quality standards

ISO 20696, 2018, edition 1, (confirmed 2023) Sterile urethral catheters for single use

Technical specifications

  • Silicone coated latex
  • The colour of the connecting piece or the filling opening of the balloon in Foley-type catheters represents a colour-code and designates the external diameter of the catheter.
sizeext diam mmcolour
CH62.0 mmlight green
CH82.7 mmblue
CH103.3 mmblack
CH124.0 mmwhite
CH144.7 mmgreen
CH165.3 mmorange
CH186.0 mmred
CH206.7 mmyellow
  • Two-way catheter:
    • central channel for urinary drainage:
      • straight distal end with side eyes
      • proximal end with funnel shape connector
    • side channel for balloon inflation ending in a non-return valve with Luer connection
  • Balloon capacity: the amount of sterile water to be inserted into the balloon is usually printed on the side of the nozzle end.
    • 3 - 5 ml paediatric balloon
    • 5 - 10 ml balloon for routine drainage in adults
  • CH 6, CH 8, CH 10 size has a guide to facilitate catheterization
  • Length: 30 to 45 cm
  • Sterile, for single use

Packaging & Labelling

Double sterile packaging per unit in peel-open pack

(Cf Introduction: Packaging and labelling)

Instructions for use

Please consult the “Manual of nursing Care Procedures, MSF, 2020” available online via the Nursing care working Group sharepoint page.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

  • Do not use in case of allergy to latex: use the silicone ones
  • If clamping is required, clamp only the drainage channel. Clamping the whole catheter could obliterate the balloon channel causing difficulties with deflating the balloon.
  • The balloon should be inflated with sterile water, never with air. Physiological saline (NaCl 0.9%) is not recommended as it may degrade the balloon.
  • Do not inflate the balloon over the indicated maximum capacity.
  • Never inflate the balloon without visualisation of urine drainage and advancing the catheter as this can cause urethral damage and pain.
  • Consider a skin protection device and the type of tape to use for patients with a high-risk of developing a pressure ulcer or being injured by tape
