1. All Products
  2. TUBE, GASTRIC, conical tip, 125 cm, s.u., CH06
Public Pricelist

TUBE, GASTRIC, conical tip, 125 cm, s.u., CH06

https://unicat.msf.org/cat/product/18437
STD SCTDTUGA06-

Valid Article

Former Code(s): -X
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
Article is intended to be used with children (<12 years) ONLY.
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
G02020101 - Nasogastric tubes
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

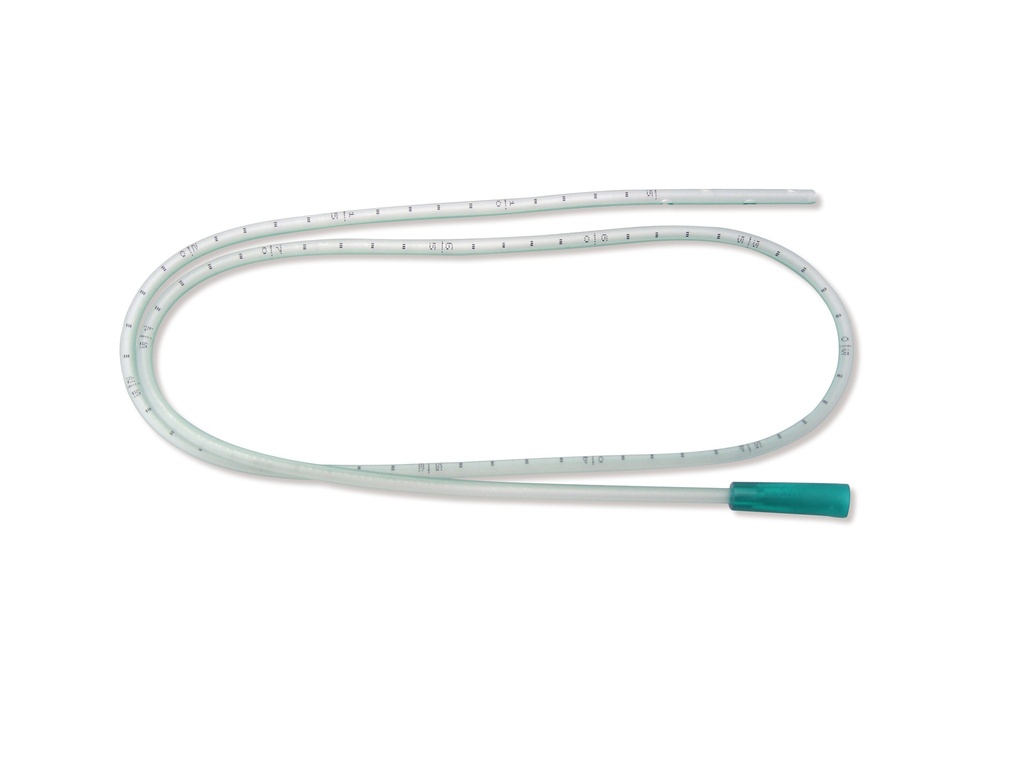

GASTRIC TUBE, conical tip

Definition

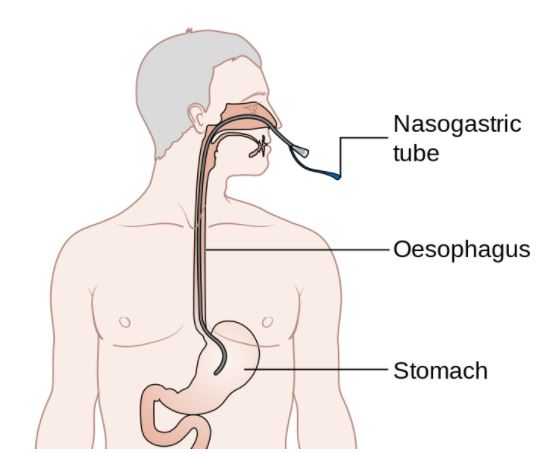

A sterile, hollow cylinder that can be introduced into the gastrointestinal tract both nasally and orally for feeding and/or aspiration.

Synonym

LEVIN tube, nasogastric/orogastric tube

Specifications

Quality standards

ISO 20695, 2020, Enteral feeding systems — Design and testing

Technical specifications

  • Transparent PVC
  • Single channel
  • Open or closed distal end, with minimum 4 oval lateral eyes with atraumatic edges
  • Proximal end with funnel shape connector
  • Radio-opaque markings from 45 cm from the distal end for easy positioning
  • Sterile, for single use
  • Dimensions:
    • Length: +/- 110 cm
    • External diameter: CH6, CH8, CH10, CH12, CH16 and CH18

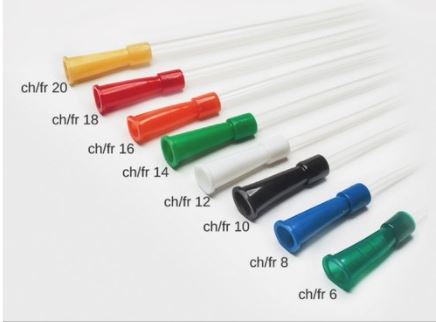

    • Size indicated by an international colour code:
sizeext diam mmcolour
CH62.0 mmlight green
CH82.7 mmblue
CH103.3 mmblack
CH124.0 mmwhite
CH165.3 mmorange
CH186.0 mmred

Packaging & Labelling

Unit sterile packaging in peel-open pack

(Cf Introduction: Packaging and labelling)

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

For mechanical gastric aspiration, it is better to use a Salem tube with double channel which enables both gastric aspiration and enteral feeding (see related articles below).

Confirm the correct position of nasogastric tubes using pH test strip

See information on Nasogastric and enteral tubes.

Some restricted information has been hidden. Sign in to see this information
