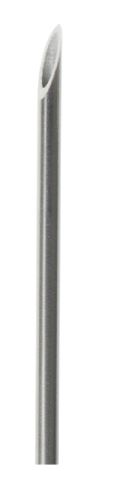

NEEDLE, SPINAL L.P., Luer, s.u., 22 G (0.7 x 40 mm)

https://unicat.msf.org/cat/product/18686
STD SINSNESD22-

Valid Article

Former Code(s): -X
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
Article is intended to be used with children (<12 years) ONLY.
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
A019014 - Lumbar puncture needles and kits
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
III
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
CT3+
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

SPINAL NEEDLE, LUMBAR PUNCTURE

Definition

Hollow needle which is introduced into the subarachnoid space between the 3rd and the 4th or 5th lumbar vertebral level to take a cerebrospinal fluid sample.

Synonym

spinal needle, Quincke Babcock needle

Specifications

Quality standards

ISO 7864, 2016, edition 4, (confirmed 2021) Sterile hypodermic needles for single use - Requirements and test methods

Technical specifications

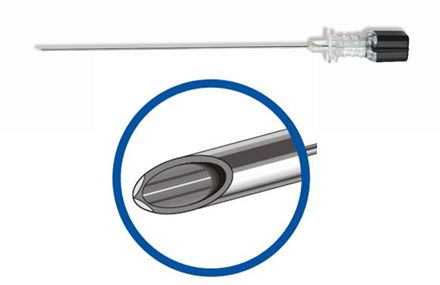

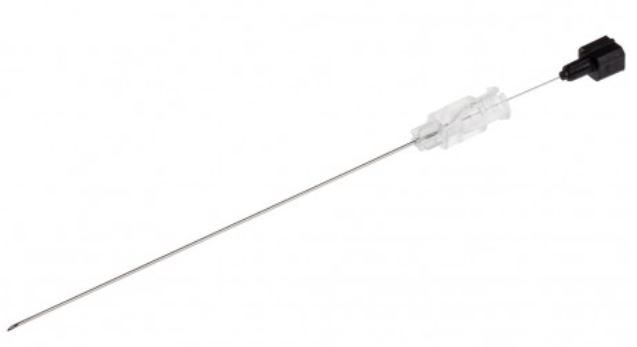

  • NEEDLE
    • stainless steel, not coated with silicone

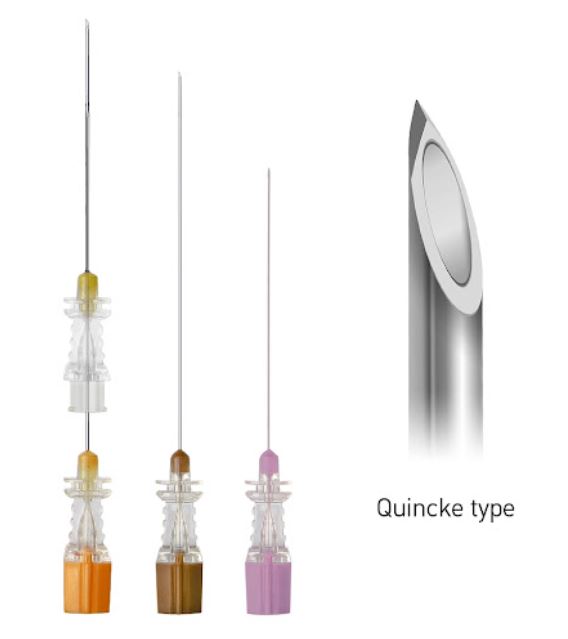

    • short bevelled tip of "Quincke" type
    • translucent hub to observe CSF reflux with female Luer connector
    • notch on the hub, indicating the direction of the bevelled tip
    • protective sheath
  • STYLET
    • stainless steel, not coated with silicone
    • closely fitted to the needle lumen
    • hub with standardized colour code corresponding to the external diameter of the needle: yellow for 20G and black for 22G
  • Sterile, for single use

Comes in 2 sizes:

  • 20 G: 0.9 x 90 mm, for adults
  • 22 G: 0.7 x 40 mm, for children

Packaging & Labelling

Unit sterile packaging in peel-open pack

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

To prevent accidental needlestick injuries, never recap the needle after use.

Some restricted information has been hidden. Sign in to see this information
