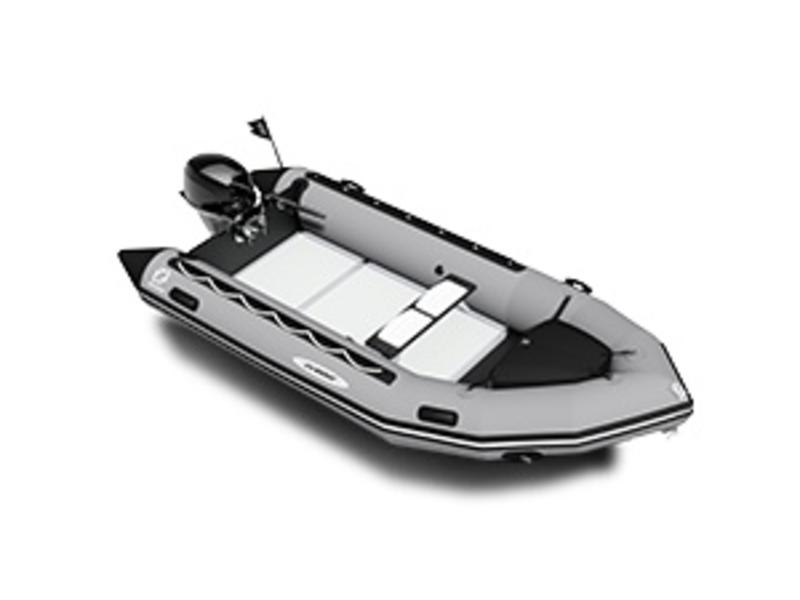

ZODIAC (Mark 2 Grand Raid) 6-7 persons, inflatable

Form

Inflatable dinghy with outboard engine. Closed article: Zodiac Mark 2 Grand Raid. For the complete kit consult KTRAKBOAI02. Per piece.

Specifications:

  • Payload: 840 kg
  • Passengers: 7 maximum
  • Diameter of floats: 46 cm
  • Floor dimensions: 92 x 295 cm
  • Length: 4.2 m
  • Width: 1.83 m
  • Weight: 87 kg
  • Equipped with handles for transportation and passenger security
  • Supplied with pump and 2 paddles

    Fit

    Can be used in combination with outboard motors of up to 50 HP or of a maximum engine weight of up to 110 kilograms. Needed shaft length is long (20").

    Could transport a maximum of 7 persons on a river, lake or calm sea.

    Function

    Intended for emergency situations: flood, evacuation of teams, or exploratory missions.

    The length of the propeller shaft does NOT depend on the navigation conditions, but on the level at which the propeller must be in relation to the bottom of the boat, as indicated in the manual.

    The engine must be secured to the boat by a cable and shackle.

    Operating a boat is difficult and should be entrusted to an experienced person. The driver must attach the emergency cord (circuit breaker) to his wrist.

    One person must be responsible of the boat to ensure it is permanently in good working order.

    One should foresee the following additional equipment according to the context: fuel, food, drinking water, flares, siren, lights + spare batteries, compass, maps, ropes, machete, watertight containers, etc.

    After a sea trip, the engine should be rinsed with fresh water.

    Do not fold the boat before it is completely dry.
