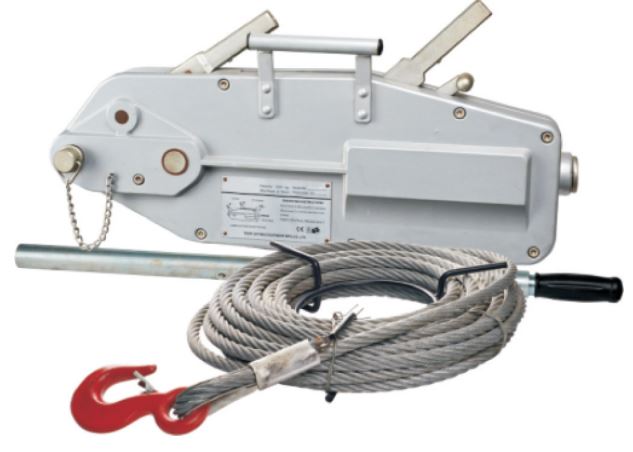

HAND WINCH, 1600kg lift/2500kg pull + 20m cable
STD
TVEAWINC162
Valid Article
Account code:
61210
HS Code:
870899
Last Updated on:
07/11/2024, 17:58:06
Former
Code(s):
-X TVEAWINC16- TVEAZBE0140
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
HAND WINCH, 1600kg lift/2500kg pull + 20m cable
Definition
Hand-operated winch for manual lifting or moving of heavy loads.
Specifications
- Lifting capacity: 1600 kg
- Pulling capacity: 2500 kg
- Lever force: 30 kg
- Lever length: 115 cm (telescopic)
- Cable diameter: dependent upon the brand
- Cable length: 20 m
- Cable breaking strength: 9 ton maximum
- Dimensions (without lever): 55 x 28 x 8 cm
- Safety system
Instructions for use
A hand winch should be among the equipment of every MSF mission.
No maintenance needed except regular lubrication.
The hand winch is delivered with 20 m of cable, but with no chain or shackle. It is recommended that you order 2 m of chain, 2 shackles, a pulley and a spare cable (See. TVEAWINC16C).
The traction force can be doubled by installing a pulley and doubling the cable length.
Precautions for Use
BEWARE
Can cause severe accidents. Ask for training for your staff.
Move onlookers aside. Check the fastenings and the cable. A kinked cable should always be replaced.
