ASSEMBLY outlet + valve + non-return, 2" + couplings

https://unicat.msf.org/cat/product/23796
STD CWATASSYV04

Valid Article

Former Code(s): CWATAOUTL02-
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

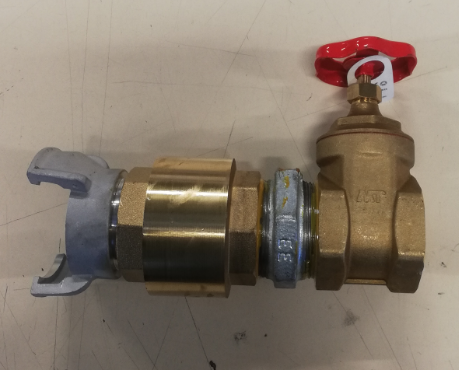

OUTLET + VALVE + NON-RETURN, 2" + set couplings, assembly

Form

Assembly with a 2” or ND50 gate valve (that opens by lifting a round or rectangular gate/wedge), threaded female on both sides connected to a non-return valve with symmetric half coupling threaded male with lock on both ends. Unit of measurement: 1 assembled set.

Fit

Fits into two symmetric half couplings 2" ND50

Part of the KAWATKPUD18H KIT, MOTOR PUMP, DIESEL, 32 m³/h (Davey + Yanmar).

Function

To regulate the delivery flow and to protect the pump from a water hammer.
