WATER FILTER UNIT portable (Water-Backpack Paul) 1200l/day

Form

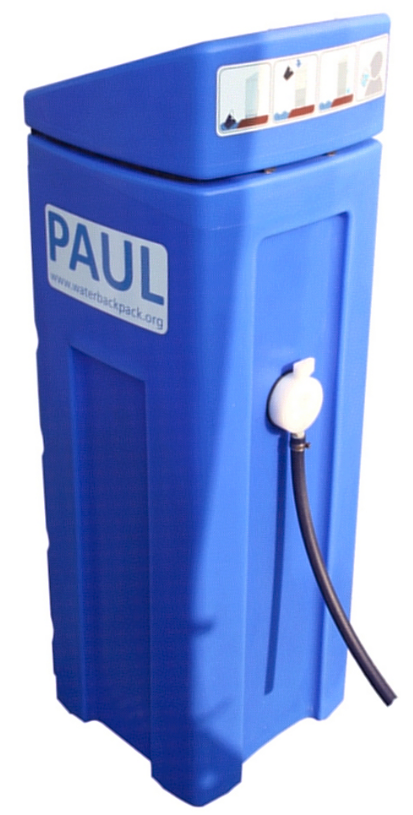

The Portable Aqua Unit for Lifesaving (short PAUL), also known as Water Backpack is a portable membrane water filter developed at the University of Kassel for humanitarian aid.

Specifications:

  • Membrane area 9.5m2
  • 1200 L / day
  • Weight: 23 kg
  • Height: 1.2 m
  • Size: 0.4x0.4m
  • 6 units fit on a standard Euro pallet

Function

Operation:

  • The core of the device is a membrane filter unit.
  • After it is set up at its destination, it is filled with about 100 litres of raw water from surface waters.
  • After a waiting period of one to two minutes, the filtered water flows out of the drain hose.
  • During filtering raw water must be replenished continuously.
