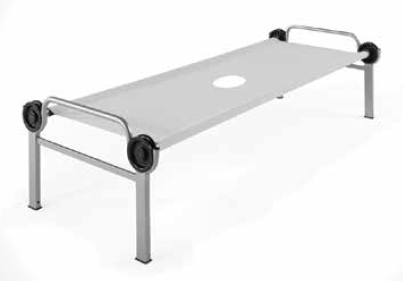

CHOLERA BED foldable, PVC, with hole + durable mat

https://medicalguidelines.msf.org/en/node/800
https://unicat.msf.org/cat/product/34657
STD CWATBEDSCM-

Valid Article

Former Code(s): CWATZNL0382 CWATBEDSDH1
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

BED, CHOLERA BED

Definition

A bed designed for treating a patient in a cholera unit. It typically includes a frame and a plastic canvas with a hole that can be easily washed and disinfected.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Frame:
    • 2 sizes: adjustable in length, 1 for adult and 1 for child
    • watertight (without openings)
    • painted steel: possible to disinfect with a chlorine solution
    • lightweight
    • minimum height canvas: 41 cm
    • with infusion stand for 4 infusion bags
    • surface area of each of the 4 legs of the bed must be large enough to not puncture the plastic sheeting on the floor
  • Canvas:
    • 2 different sizes: 1 for an adult, 1 for a child
    • closed at the top and bottom ends (where the head and feet are)
    • circular hole in the middle: Ø 20 cm for adult, Ø 10 cm for child
    • plastic: disinfection with chlorine solution
  • Solid and robust: frame and canvas must support adult patients of up to 120 kg
  • Transport bag

Dimensions

Canvas:

  • adult minimum : 200 x 80 cm
  • child minimum: 150 x 80 cm

Packaging & Labelling

Packed individually in a transport bag.

Instructions for use

Intended for treatment of cholera during epidemics.

Clean and disinfect thoroughly at frequent intervals and in-between patients.

Maintenance

The frame and the canvas can be cleaned and disinfected with a 0.2 % active chlorine solution . After that, the frame must be thoroughly rinsed with potable water as chlorine is corrosive to stainless steel.

Waste management

Damaged beds must be thoroughly cleaned and disinfected before disposal.

Some restricted information has been hidden. Sign in to see this information

MSF requirements

  • solid, stable and comfortable
  • minimal weight and volume to enable international transport
  • easy to disinfect
  • easy to set up and dismount
  • multiple uses: adapted for children and adults (and by request also for routine patient treatments)

Possible alternative

An existing hospital bed can be made into a cholera bed using a "Ferari" canvas. Obviously this approach is less thorough and cheaper (+/- 15 €), but the availability is not always possible. Contact your water & sanitation officer for more information.
