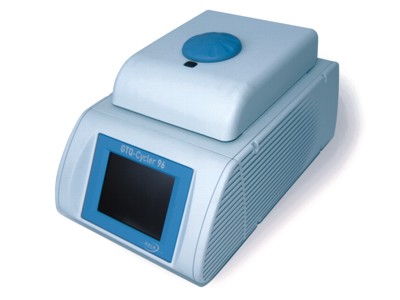

THERMAL CYCLER (GTQ-Cycler 96), 96 samples
STD
ELAEMBIE52-
Valid Article
Account code:
60110
HS Code:
901890
Last Updated on:
24/04/2024, 13:39:30
Former
Code(s):
ELAEZNL0483 ELAELPAE2-- ELAEPCRE52-
THERMAL CYCLER (GTQ-Cycler 96), 96 samples
Reserved for TB culture programmes.
Definition
Thermal cycler for polymerase chain reaction (PCR) of DNA segments, pre-programmed for GenoType and GenoQuick® tests from HAIN.
Synonym
PCR machine, thermal cycler, thermocycler
Specifications
Some restricted information has been hidden. Sign in
to see this information
Technical specifications
- Capacity: 96 x 0.2 ml PCR tubes/ 1 x 96 well PCR plate (0.2 ml)
- Lid: 111 – 120°C in steps of 1°C
- Screen: 6.4 inch TFT color touch-screen
- Temperature display: Real-time digital system of actual and set block and lid temperature
- Peltier elements: 8, Communication: USB port, Block types: 96 well (0.2 ml)/ 48 well (0.2 ml or 0.5 ml)/ 384 well (0.2 ml)/ Microarray/slide
- Material: Gold coated silver block, 4 Temperature sensors
- Temperature control: Simulated volume dependent control algorithm
- Validation: Internal auto validation, Sample volume: 5 – 100 μl using 96 well block, Operating range: 4 – 99.9°C in steps of 0,1°C
- Temperature accuracy: +/-0.4°C (20 – 99°C)
- Temperature homogeneity: +/-0.4°C
- Heating rate: up to 5°C/s
- Cooling rate: up to 3°C/s
- Dimension: 34 x 26 x 42 cm
- Weight: 12 kg
- Power supply: 100 – 240 V, 50 / 60 Hz
- Operating conditions: 10 – 30°C, 0 – 95% rel. humidity
Instructions for use
Precautions for Use
Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.
Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).
MSF requirements
Used in TB programs for molecular detection and differentiation of the M. tuberculosis complex and its resistance profiles.
