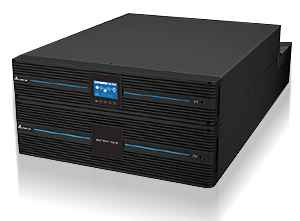

MODULE UPS double convers. (Delta RT EXTEND.) 6kVA, 1ph/1ph

Form

  • Input voltage range 100 - 300 V (note that between 100 V and 180 V input voltage, the output power is reduced by 50 - 100%; full power is available only at 180V AC and above). At higher (>300 V) or lower (<100 V) voltages the UPS switches to battery power
  • Nominal power 6 kVA
  • Input and output frequency 50 or 60 Hz
  • Power factor >0.99
  • Efficiency (full load) >92%
  • Without battery
  • 1 phase output
  • With a LCD-display
  • Dimensions WxDxH:
    • electronic unit: 430 x 440 x 88.2 mm
    • battery: 440 x 650 x 130 mm
  • Weight: 10.9kg

This kit is contains 3 articles.

Fit

Can be used in any electrical installation. To function it needs a battery pack, which is included in this article. The autonomy of the "extended" (EXT) version can be increased by placing more battery packs in parallel.

Function

A double conversion uninterruptible power supply (UPS), an electronic unit, or also called a double conversion uninterruptible power supply (UPS), guarantees a perfect AC supply and is especially suitable for vulnerable and/or expensive equipment such as medical and laboratory equipment. There is no connection between the incoming power and the outgoing power. All possible electrical problems such as voltage spikes are eliminated.

Transport Dangerous Goods

UN3171/A67 - Battery-powered equipment.
