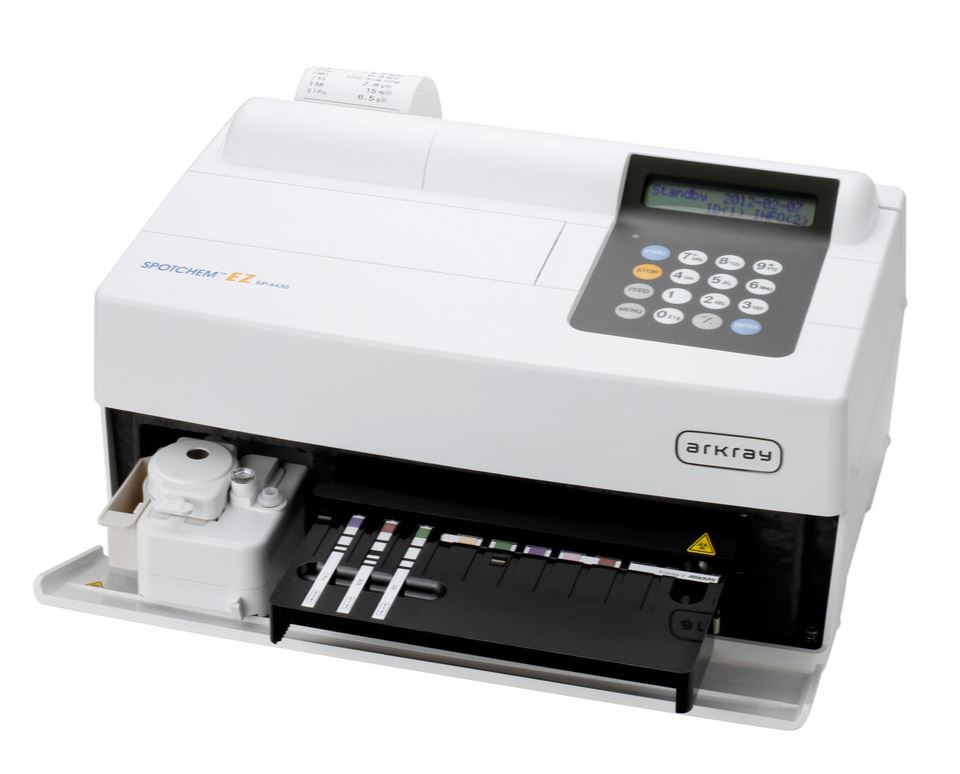

ANALYSER, CLINICAL CHEMISTRY (Spotchem EZ)

Please check with your OC lab referent to ensure the appropriate choice of biochemistry equipment, depending of your context

Definition

Dry chemistry analyzer for the quantitative measurement of biochemistry parameters from whole blood, serum or plasma samples using test strips.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Specimen: serum, plasma or whole blood
  • Throughput: 63 tests/hour
  • Individual parameters or in panels (max. 9)
  • Warm-up time: 10 minutes
  • Measurement conditions: 10-30°C and 20-80% humidity
  • Processing Speed: 63 tests/hr
  • Minimum Sample: 6 x number of tests + 38µl (min. 250 µl when using whole blood in internal centrifuge)
  • Sample Container:
    • Whole blood (exclusive blood centrifuge tube)
    • Serum-plasma (exclusive serum sample tube)
  • Data Storage: 100 measurements
  • Calibration by magnetic card, Printer: 58mm width built-in thermal line printer (max. 36 characters / line)
  • Power Supply: AC 100-120V, 220 - 240V, 50/60 Hz (AC adapter method)

Dimensions

  • Weight: 5.4 kg
  • Dimensions: 338 mm x 203 mm x 167 mm

Supplied with the Article

  • Power cord
  • AC adapter
  • Accessory case:
    • 10x tips
    • Cleaning wire
    • Cleaner set: brush, cotton swab
    • Nozzle set: nozzle with O-ring
    • 2x wrench set for nozzle replacement
    • 10x centrifuge tubes
    • 2x tip waste cases
    • 2 protective covers
    • 1 thermal printer paper, width 58mm
  • Operating manual
  • Warranty card with case, delivery label

To be Ordered Separately

see related items:

  • Spotchem II reagents strips
  • for testing whole blood: whole blood sample tube (orange cap)
  • for testing serum plasma: serum sample tube (blue cap)

Instructions for use

Storage

Keep the device at 1-30°C and 20-80% humidity

MSF requirements

Please contact your laboratory advisor to help identify the best chemistry analyzer to answer your projects needs.
