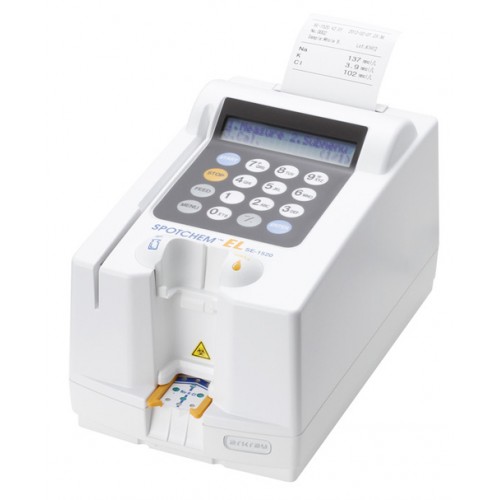

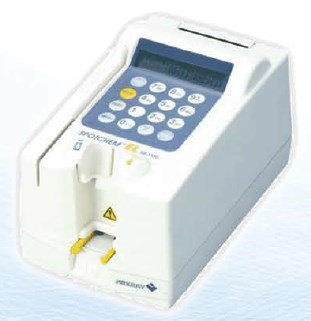

ELECTROLYTES ANALYSER (Spotchem EL SE-1520)

Definition

The Spotchem EL SE-1520 is an electrolyte measurement system that uses a disposable ion selectivity electrode. It enables simultaneous measurement of basic three items sodium (Na+) , potassium (K+) and chloride (Cl-) from whole blood (heparin), serum, plasma (heparin) or urine.

Specifications

Parameters: Na+, K+, Cl-

Some restricted information has been hidden. Sign in to see this information

Components

  • Analyzer EL SE-1520
  • AC adapter
  • Power cord
  • Twin pipette
  • Operating manual
  • Accessory box:
    • check plate
    • 5 cotton buds
    • plate tray
    • thermal printer paper

Technical specifications

  • Sample: whole blood, serum, plasma, urine
  • Consumed sample: 22 µl
  • Sample supply: manual pipetting by twin pipette
  • Measurement principle: potentiometric method with ion selective electrodes
  • Measurement time: approx. 1 minute
  • Incubation temperature: 32°C
  • Display: LCD (20 characters x 2 lines)
  • Built-in printer: 36-character thermal printer (paper width: 58 mm)
  • External output: RS-232C interface (serial)
  • Transmission method: one-way/two-way transmission
  • Transmission speed: 9600 bps
  • Memory: 50 measurements
  • Expected life: 5 years (according to company data)
  • Power supply mains AC
    • Voltage 100-240V (+-10%), Frequency: 50/60Hz
    • Power consumption: 40 VA
  • Operating conditions
    • Temperature: 10-30°C
    • Humidity: 20-80% RH (non-condensing)

Dimensions

(WxDxH): 135 x 225 x 138 mm

Weight: approx. 1.5kg (analyzer only)

To be Ordered Separately

  • Tests, E-plate (Na/K/Cl). Ref. 77083
  • Multilevel control, normal and pathological. Ref. HS2611
  • Pipette tips, pink. Ref. 22963

(see related tests/controls and consumables)

Instructions for use

Read carefully the user manual before use

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Maintenance

  • Cleaning of plate tray: daily
  • Cleaning of plate transfer part: daily
  • Replacement of thermal printer paper: when a red line appears on the both sides
  • Cleaning of probe: once every 500 measurements
  • Cleaning of twin pipette II: once a month
  • Replacement of nozzle o-ring: about once a year

Storage

  • Temperature: 1-30°C
  • Relative humidity: 20-80% (non-condensing)

MSF requirements

Introduce this analyser according to the MSF Diagnostic packages
