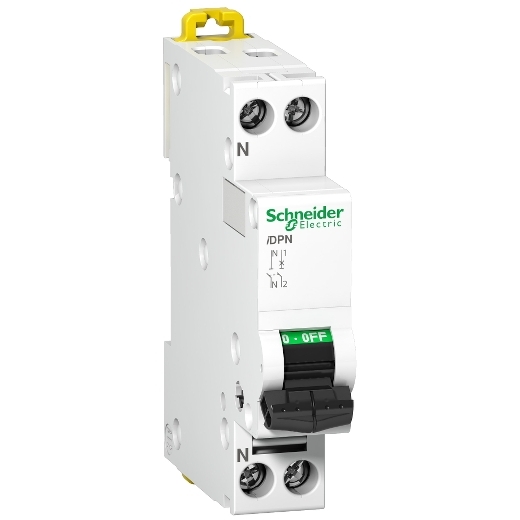

CIRCUIT BREAKER MCB B-curve, 20A Icu4.5kA, 1P+N mod

https://unicat.msf.org/cat/product/35410
STD PELEMCB0PB20S

Valid Article

Former Code(s): PELEZNL0152 PELEMMCBPB20S
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CIRCUIT BREAKER MCB B-curve, 20A, Icu 4.5kA, 1P+N mod

Form

  • Circuit breaker 1P+N 20 amps, B Curve, 4.5 kA Icu conforming to EN/IEC 60947-2 - 230 V AC 50/60 Hz. Thermal-magnetic.
  • Single terminal, top or bottom rigid wire(s) 1-10 mm² max
  • Single terminal, top or bottom flexible wire(s) 1-16 mm² max
  • Operational temperature: -35 +70 °C
  • Height: 85mm
  • Width: 18mm
  • Depth: 74mm
  • Weight 0.12kg

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
