LIGHTNING-SURGE PROT. type2, 1P+E/40kA, modular

NST PELEPROT02M

Valid Article

Former Code(s): PELEZNL0268
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



(Distribution box) SURGE PROTECTION, 1P+N, railmntDIN

Form

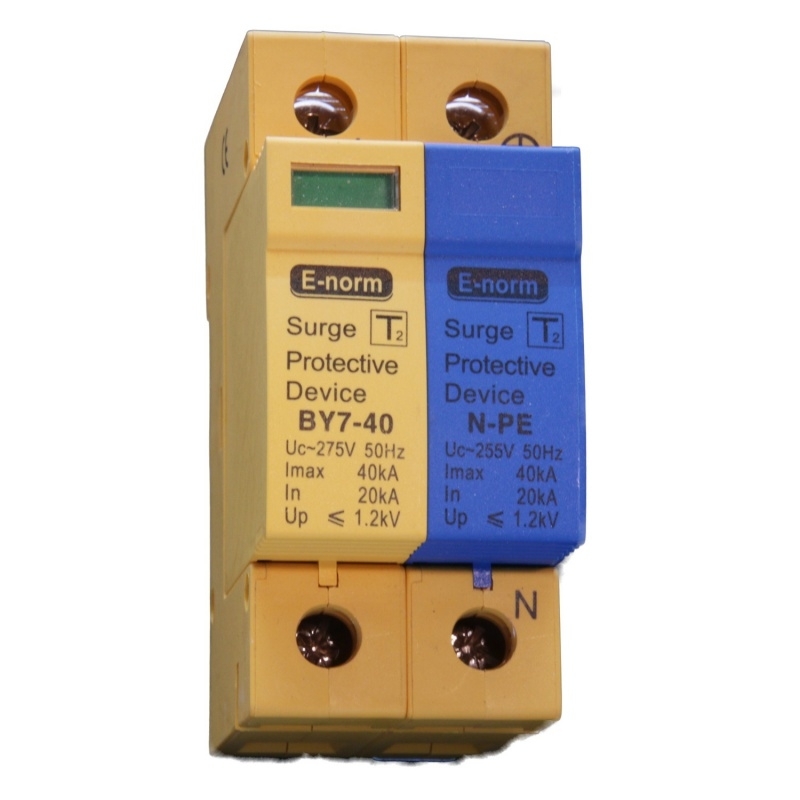

Surge protection device, maximum discharge surge current IMAX 40KA, rated 230 Volts, indicator, Green OK Red FAIL, DIN rail mountable, remote signal connection capable.

The blue N-PE protection and yellow L-N protection modules plug into the base, these can be replaced when they fail or or are consumed during a voltage surge.

Terminal cable size range 4 through 25 mm² fixed screw type.

Per unit.

Fit

Fits with electrical distribution and control boards where surge protection is required.

Function

Functions by discharging to earth / ground remnants of lightning impulse currents and/or switching surges.

Consult: 5.9. LIGHTNING PROTECTION: MSF– ICRC Electrical Installations and Equipment in the Field: Rules and Tools, latest version.

Also check with your electrical referent for more information before ordering.
