CIRCUIT BREAKER MCB C-curve, 25A Icu6kA, 2P mod

https://unicat.msf.org/cat/product/35536
STD PELEMCB02C25M

Valid Article

Former Code(s): PELEZNL0374 PELEMMCB2C25M
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

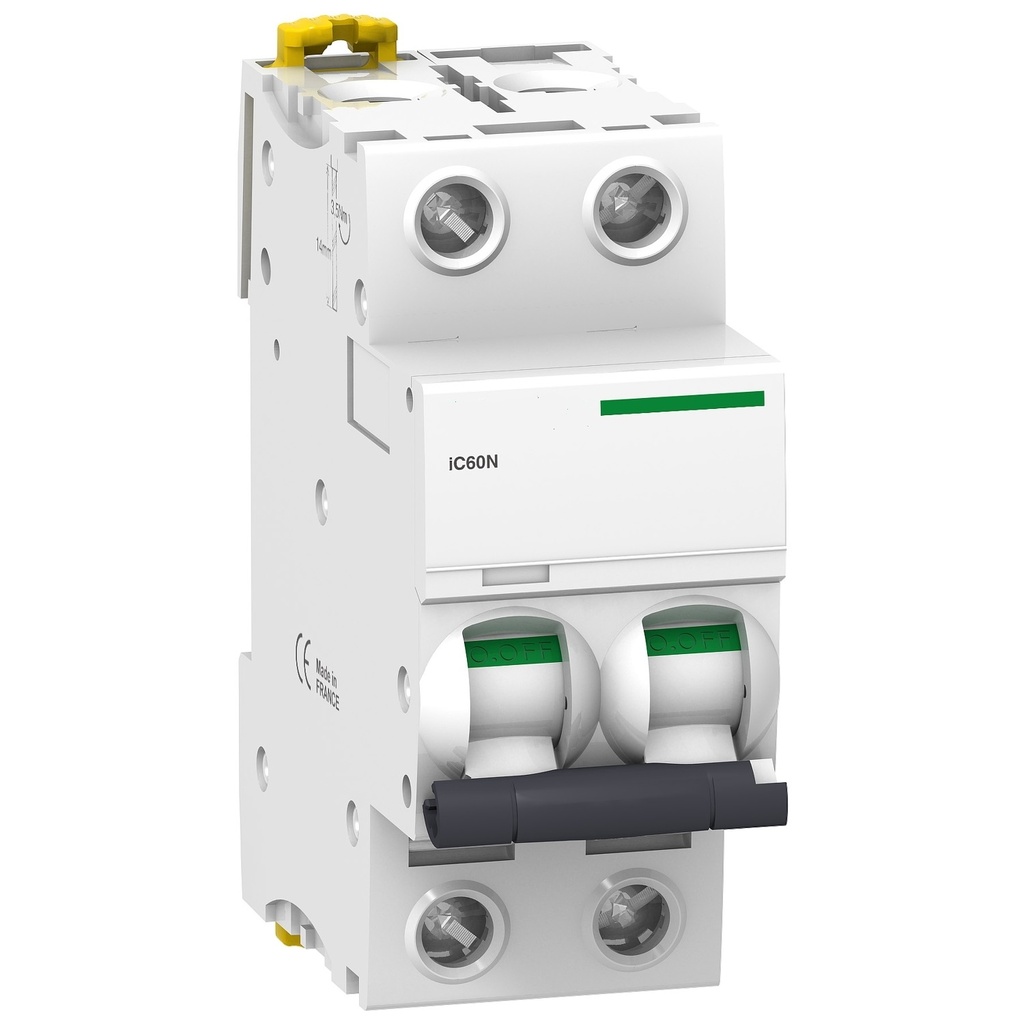

CIRCUIT BREAKER MCB C-curve, 25A, Icu 6kA, 2P mod

Form

  • Circuit breaker 2 pole, 25 amps, C Curve 6 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz. Thermal-magnetic.
  • Single terminal, top or bottom rigid wire(s) 1-25mm² max
  • Single terminal, top or bottom flexible wire(s) 1-16 mm² max
  • Operational temperature: -35 +70 °C
  • Height: 85mm
  • Width: 36mm
  • Depth: 78.5mm
  • Weight 0.25kg

Open article.

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
