SUBMERSIBLE PUMP (Grundfos SQ5-50) 230V
NST
CWATPUMES55
Valid Article
Account code:
61110
HS Code:
841319
Last Updated on:
11/12/2024, 20:57:12
Former
Code(s):
CWATZBD0118
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

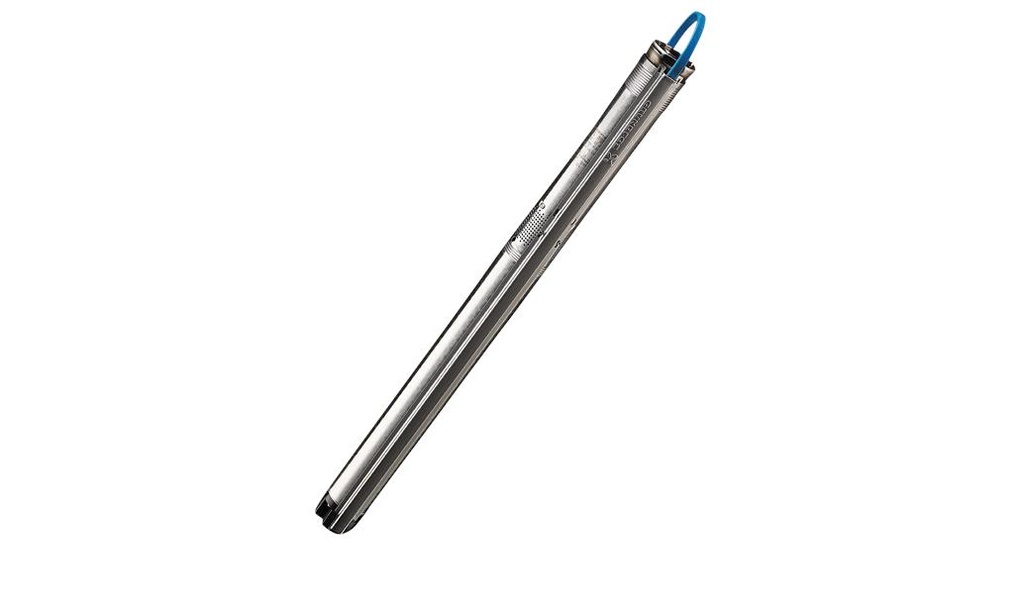

SUBMERSIBLE PUMP (Grundfos SQ5-50) 230V
Form
Submerged centrifugal pump, powered by an electrical motor, both integrated within a metallic cylinder with a filter part in the middle and with a waterproof electrical system. Pump diameter: 74 mm. Closed article: Grundfos SQ 5-50. Per piece.
Specifications:
- Engine:
- Electric, single phase, 230 VAC, 50 Hz
- Slow starting (runs on the 3-4 kVA generator when new)
- Over- and under voltage protection
- Dry run protection
- Equipped with non- return valve
- Rated pump performance H = 48 m, Q =5 m3 / h
Fit
The outlet has a female threaded 1"1/2 connection.
Needs electrical supply, single phase 230 V (network or generator).
Internal diameter of the borehole: Minimum 76 mm.
Function
Used to extract water from deep wells,or from closed wells. Little maintenance required. Pump has to be completely submerged in water to function properly.
See 'Public health engineering in precarious situations' T.B. 2.25 T.B. 2.26 T.B. 2.29
