PRESSURE BOOSTER, 2x4.5m³h/35m, 220V
NST
CWATPUMEB35
Valid Article
Account code:
61110
HS Code:
841319
Last Updated on:
29/06/2025, 23:41:08
Former
Code(s):
CWATZBD0308
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

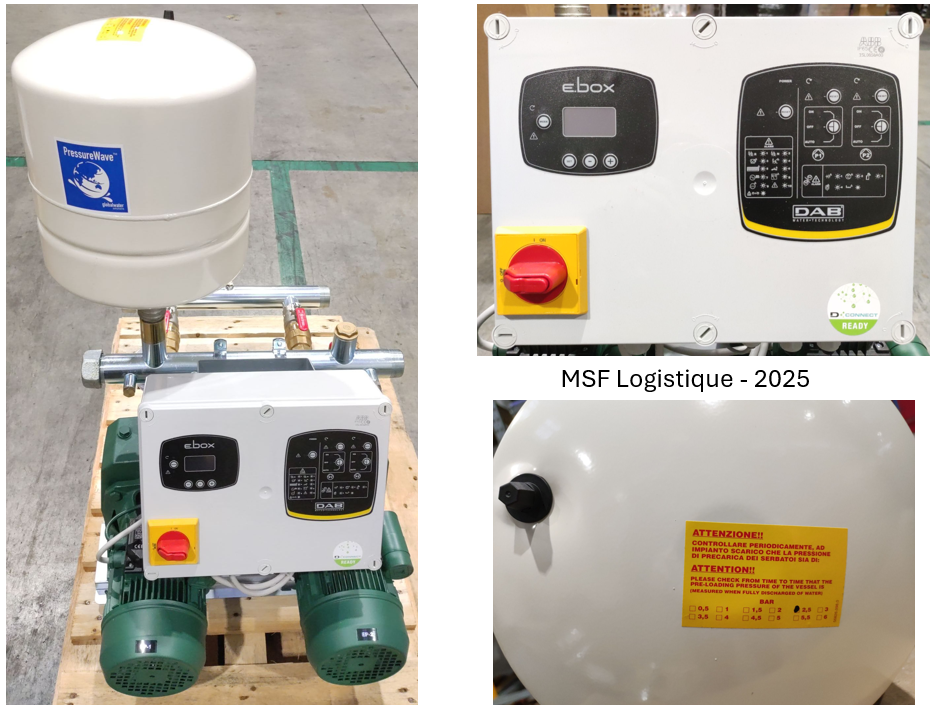

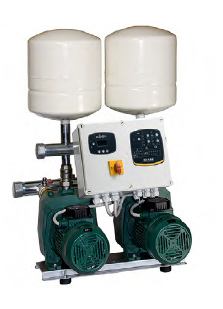

PRESSURE BOOSTER, 2x4.5m³h/35m, 220V
Form
Set of 2 self-priming JET pumps on chassis .
Suction and discharge manifold galva with 1 diaphragm tank of 18 liters, 1 analog pressure sensor on the discharge, with 1 gauge and stop valve, isolation valves and anti-return valves
Controlled and protected by electrical box IP55. Pump control by analog pressure sensor, with short-circuit and electronic thermal protections.
- Single phase 230V 50Hz, 2 x 1100W 2 c7.2A
- standard pressure 3.3 to 5 bar
- debit 06 to 9 m3
- HMT max.58m
- DN Asp: 2" 50/60
- DN Ref. 1"1/2 40/49
- weight 101kg
