1. All Products
  2. (resusc./ventilator) PEEP VALVE 20, inlet conn.30mm,reusable
Public Pricelist

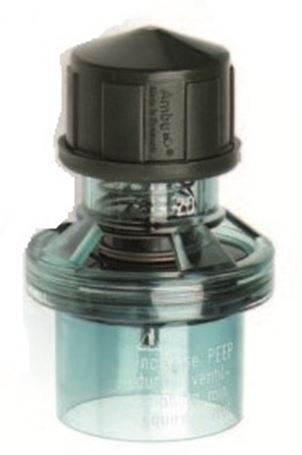

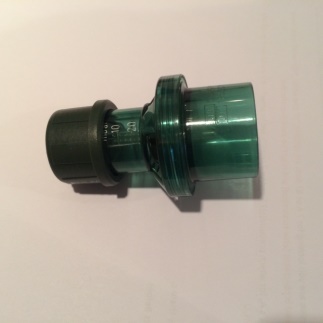

(resusc./ventilator) PEEP VALVE 20, inlet conn.30mm,reusable

https://unicat.msf.org/cat/product/41243
STD EANEANAA307

Valid Article

Former Code(s): EANEZFR0136 EANEANAA406 EANEANAS625 EANEZBE0228 EANEANAA619 EANEANAS621
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
R028001 - Respiratory circuits valves
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

PEEP - Positive End Expiratory Pressure Valve

Definition

A non-sterile device used in a respiratory or anaesthesia breathing circuit or system to maintain a selected level of positive end expiratory pressure (PEEP) in a patient's airway during ventilation.

The device is typically constructed of plastic and metal materials, and has a valve(s) actuated with a spring(s) to provide the airway resistance, and an adjustable knob or dial (usually graduated) to adjust the resistance level typically between 5 to 20 cm H2O.

It is used with ventilators, stand-alone breathing systems for oxygen delivery, pulmonary resuscitators, or anaesthetic breathing systems often having an expiratory valve function. This is a reusable device.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

Reusable PEEP valve 20

  • material:
    • transparant plastic parts: polysulphone
    • plastic parts of valve body: polysulphone with delrin disc and silicone oil
    • sealing adjustment cap: EPDM rubber
    • springs: stainless steel
  • adjustable between 1.5 and 20 cm H20
  • 30 mm inlet connection
  • non sterile
  • autoclavable up to 134°C

MSF requirements

During transport of mechanically ventilated patients an Ambu bag is often used. The addition of the PEEP valve allows to maintain a degree of oxygenation and lung aeration in patients with respiratory failure.

Some restricted information has been hidden. Sign in to see this information
