ALTERNATING-PRESSURE MATTRESS with OVERLAY SYSTEM (Invacare)

STD EEMDMAFE1--

Valid Article

Former Code(s): EHOEZFR0588 EHOEMISC265 EHOEZBE1265
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
V080701 - Active anti-decubitus medical mattresses
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

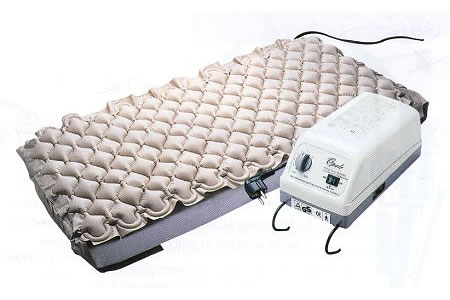

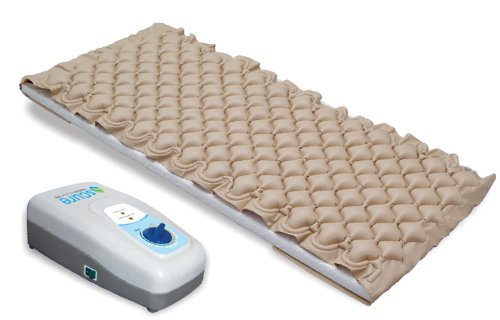

ALTERNATING-PRESSURE OVERLAY SYSTEM (Invacare)

Definition

An assembly of devices consisting of an alternating-pressure bed mattress overlay and a dedicated electric pump, which also functions as the control unit, designed to actively alternate a bed occupant's bed-contact points, typically to relieve pressure points for comfort and to prevent pressure sores. It is commonly used for elderly immobilized (especially in cases of decubitus ulcers), patients with disabilities, or patients with low body fat.

Synonym

bed sores mattress

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

Air Compressor = control unit (Liber 803)

Air compressor with manual adjustment according to patient weight from 50 to 100 kg. Very quiet, it is equipped with 2 mounting brackets to put it directly on the bed or the bed panel.

  • Weight: 2.2 kg
  • Size (L x W x H): 27cm x 15cm x 14cm
  • Electric cable length: 3m
  • Airflow: 3.2 l/min
  • Complete cycle every 3 min.
  • Fuse: 1A 250V​

Mattress overlay (Eskal L839)

  • Single-cell deformable PU mattress overlay. This mattress overlay is alternating pressure in 10-minute cycles to avoid prolonged and excessive pressure.
  • Weight: 2.5 kg
  • Max. weight patient: 100kg
  • Size: 89 cm x 194 cm x 7 cm

Instructions for use

  • Place the compressor flat or hang it with hooks on the end of the bed.
  • Place the overlay on the mattress, holding it in place by sliding the two 50cm flaps on the edges of the overlay under the mattress at the head and foot of the bed.
  • Connect the compressor to the overlay using the two hoses. Check that the hoses are not kinked or caught under the mattress.
  • Set the pressure to maximum. Connect the compressor to the electrical supply and set the switch to ‘'ON''. The green LED will light to indicate that the compressor is working.
  • Wait 20 minutes for the overlay to inflate; this can be done with the patient on the mattress.
  • Adjust the pressure so that you can place two fingers between the patient's buttocks and an uninflated part of the mattress. The following table provides an idea of the pressure settings according to the weight of the patient.
PressureWeight (kg)PressureWeight (kg)
130570
240680
350990
4608100

Precautions for Use

Warning: to maintain its efficiency, the overlay must be covered with an elastic bedsheet‌

Maintenance

Between patients, the mattress must be cleaned and disinfected with a detergent/disinfectant for surfaces/non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix with other products. Make sure to wet surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.

In the event of a puncture, deflate the overlay and use the repair kit supplied with the overlay. Degrease the vinyl cover to assist adhesion.

MSF requirements

Mattress needed for patients bedridden for a long time during hospitalisation and who can not move.
