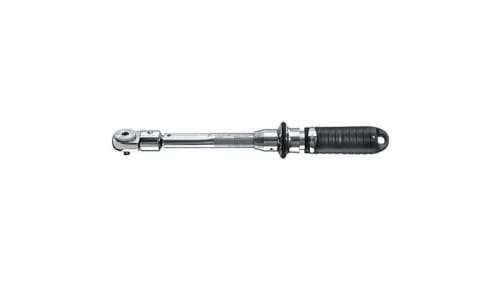

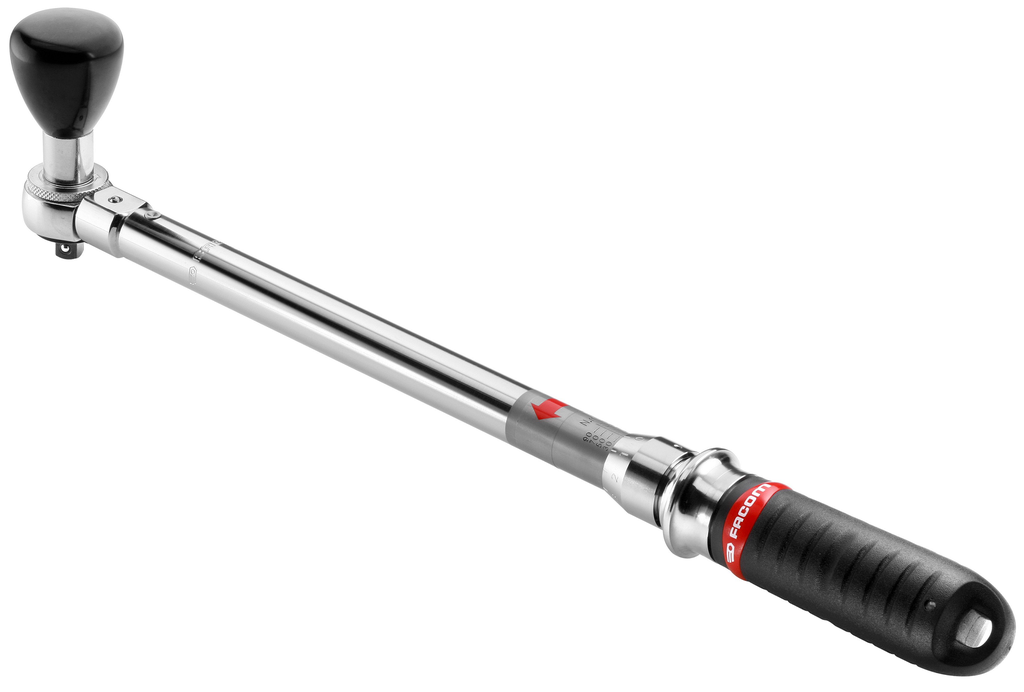

TORQUE WRENCH auto reset, ½", 20-100Nm, S.306A100

Form

Metallic bar, with handle at one end and a ½" connection on the other, without socket. Torque or moment of force between 20 and 100 N·m. Per piece.

Specifications

  • Length: 437 mm
  • Capacity: 20-100 N.m
  • Ratchet: S.372 ( square 1/2)
  • Graduation: 1 N.m
  • Knob: S.305P
  • Weight: 1 Kg
  • Factory accuracy: ± 2%
  • Reliability of mechanism: 50 000 cycles
  • One-way wrenches usable for unscrewing by reversing the bits
  • Supplied in a plastic box with ratchet and hinged handle

Fit

Compatible with all the 1/2" sockets.

Function

Tool that allows to realise the tightening torque of nuts and screws respecting the manufacturer recommendations.
