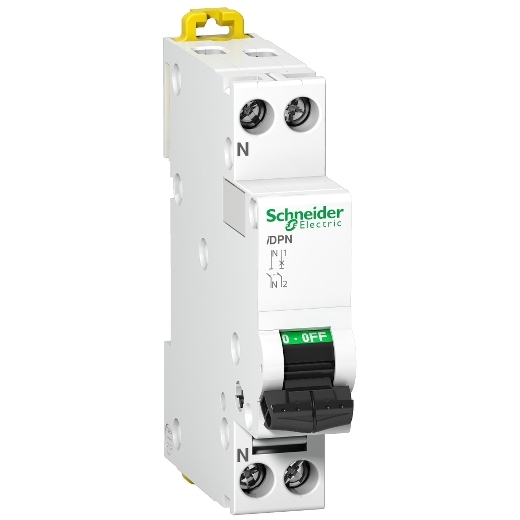

CIRCUIT BREAKER MCB C-curve, 6A Icu6kA, 1P+N mod

Form

  • Circuit breaker 1P+N 6 amps, C Curve, 6 kA Icu conforming to EN/IEC 60947-2 - 230 V AC 50/60 Hz. Thermal-magnetic.
  • Single terminal, top or bottom rigid wire(s) 1-25mm² max
  • Single terminal, top or bottom flexible wire(s) 1-16 mm² max
  • Operational temperature: -35 +70 °C
  • Height: 85mm
  • Width: 18mm
  • Depth: 74mm
  • Weight: 0.12kg

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
