GENERATOR (FG Wilson P33) 30kVA 400V 50Hz 3ph, diesel

Definition

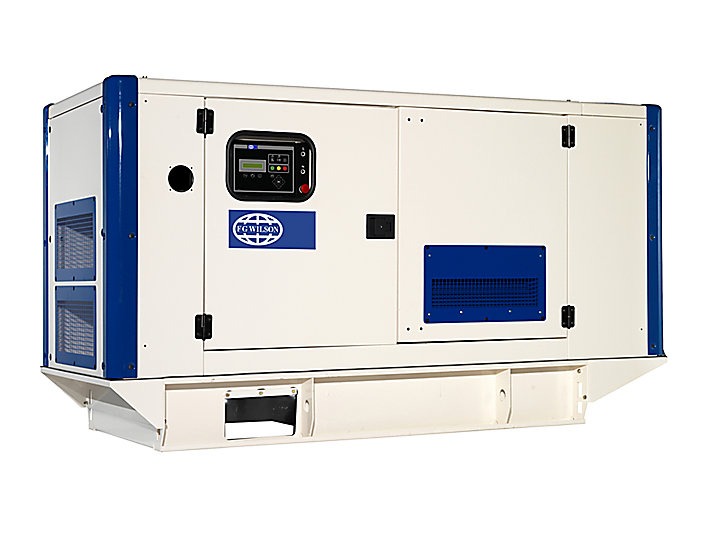

Three-phase 33 kVA (stand-by) generator installed in a noise reducing enclosure. Controlled by the DCP-10 control panel. Includes flexible exhaust pipe and spares for 5000 hrs of services. Standard modifications include addition of fleetgaurd water-separating fuel pre-filter.

Specifications

Generator set specifications

  • Minimum Rating 30.0 kVA / 24.0 kW
  • Maximum Rating 37.5 kVA / 30.0 kW
  • Emissions/Fuel Strategy Fuel Optimised
  • Voltage 400 Volts
  • Frequency 50Hz
  • Speed 1500 RPM
  • 50 Hz Prime 30.0 kVA / 24.0 kW
  • 50 Hz Standby 33.0 kVA / 26.4 kW

Engine specifications

  • Engine Model Perkins® 1103A-33G1
  • Compression Ratio 19.25:1
  • Governor Type Mechanical
  • Bore 105 mm (4.1 in)
  • Displacement 3.3l (201.4 cu. in)
  • Stroke 127 mm (5 in)

Transport Dangerous Goods

Generators might be considered as dangerous goods for transport:

  • If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
  • If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations

Instructions for use

Please refer to enclosed documentation and documents on energy website.
