CIRCUIT BREAKER MCB (S-A9F78450) B-curve, 50A Icu6kA, 4P mod

Form

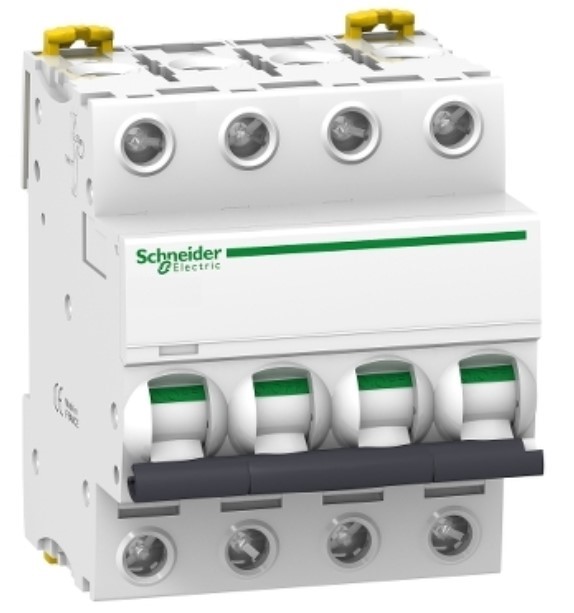

Thermo-magnetic circuit breaker, S-A9F78450:

  • 4 pole, 50 A, B-curve
  • 440 V AC, 50/60 Hz
  • Icu 6 kA conforming to EN/IEC 60947-2
  • single terminal, top or bottom rigid wire(s): 1-25 mm² max.
  • single terminal, top or bottom flexible wire(s): 1-16 mm² max.
  • operational temperature: -35 ... +70 °C
  • dimensions (HxWxD): 85 x 72 x 78.5 mm
  • weight: 0.5 kg

Per piece.

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

It's fitting the DIN modular system (=mod).

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

If an overload condition is detected the MCB is switching off the circuit using a mechanical switch.
