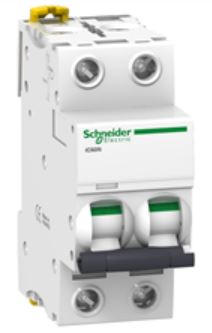

CIRCUIT BREAKER MCB (S-A9F78216) B-curve, 16A Icu6kA, 2P mod

Form

Thermo-magnetic circuit breaker, S-A9F78216:

  • 2 pole, 16 A, B-curve
  • 440 V AC, 50/60 Hz
  • Icu 6 kA conforming to EN/IEC 60947-2
  • single terminal, top or bottom rigid wire(s): 1-25 mm² max.
  • single terminal, top or bottom flexible wire(s): 1-16 mm² max.
  • operational temperature: -35 ... +70 °C
  • dimensions (HxWxD): 85 x 36 x 78.5 mm
  • weight: 0.25kg

Per piece.

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
