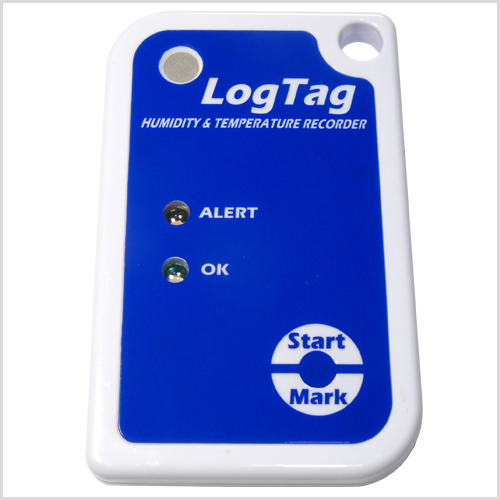

HYGROMETER recorder (Logtag Haxo-8)

Form

Humidity & temperature recorder that measures and stores up to 8000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100% RH and& -40°C to +85°C.

Specifications:

  • humidity resolution: better than 0.1% RH
  • temperature resolution: better than 0.1°C
  • capacity: 8000 pairs of humidity & temperature readings
  • memory: 32 KB
  • sampling frequency: adjustable, 30 seconds to several hours
  • logging start options: push the start button or set a specific date & time
  • recording indication: Flashing 'OK' indicator / flashing 'ALERT' indicator.
  • download time: typically with full memory (8000 readings) in less than 10 secs depending on computer or readout device used
  • protection marking: IP61 (when hung or mounted vertically)
  • power source: 3V LiMg battery
  • battery life: 2 ~ 3 years of normal use*
  • size: 86 mm (H) x 54.5mm (W) x 8.6mm (T)
  • weight: 35 g
  • case material: polycarbonate
  • optional clearing of alert indication by push button (an inspection mark is placed at same time)
  • every time the LogTag is downloaded the inspection mark recorded in its memory is downloaded as well
  • 'prestart' fail-safe logging (records temperature data even if not started)
  • low battery indication in software
  • comprehensive alert indicator configuration

Closed article: LogTag HAXO-8 Humidity & Temperature Recorder. Per piece.

* "Normal Use" refer to the standard MSF configuration of the Logger which take a new measurement of the temperature every 15 minutes.

Function

Recommended for temperature and relative humidity monitoring in the pharmacies. Not intended for fridge monitoring.
